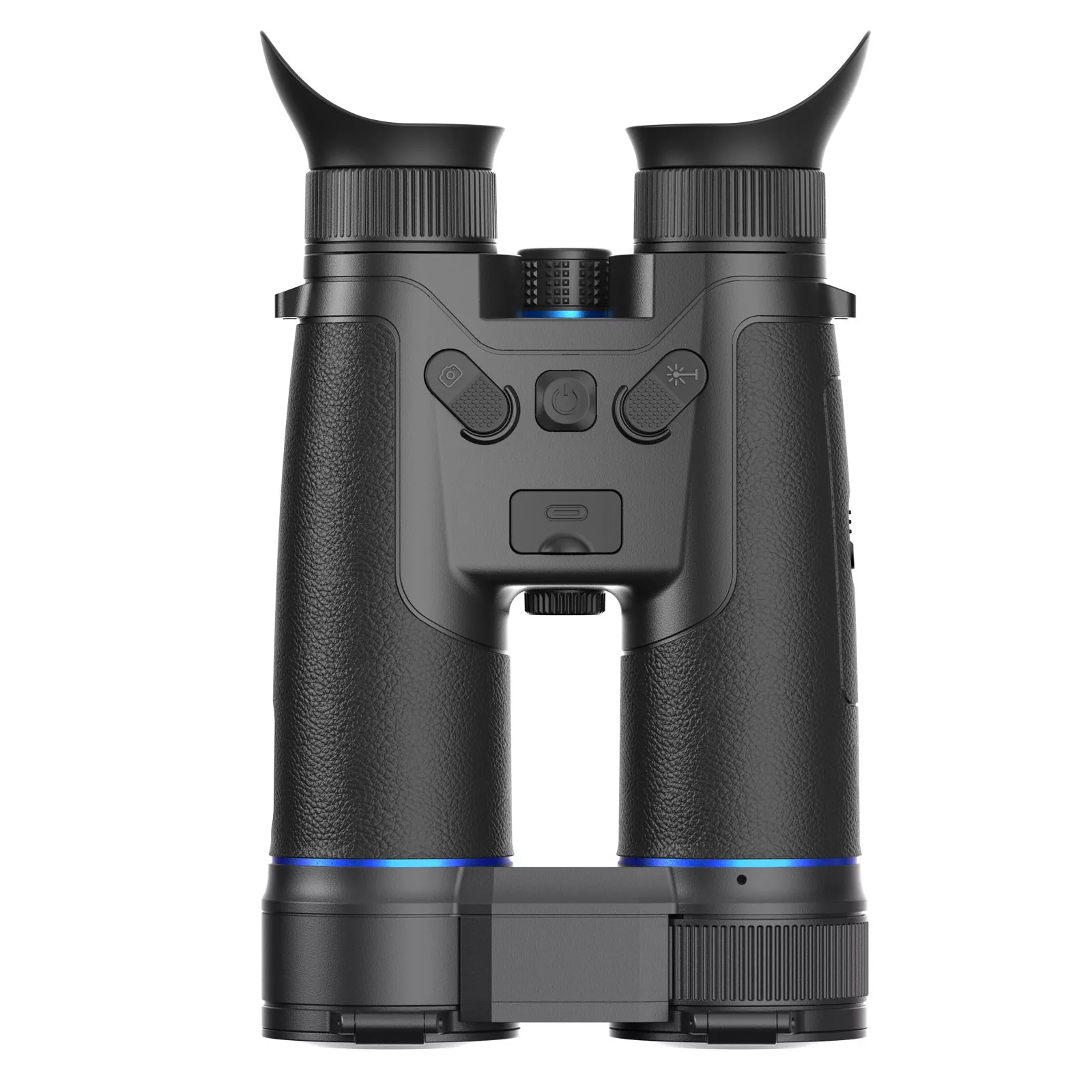

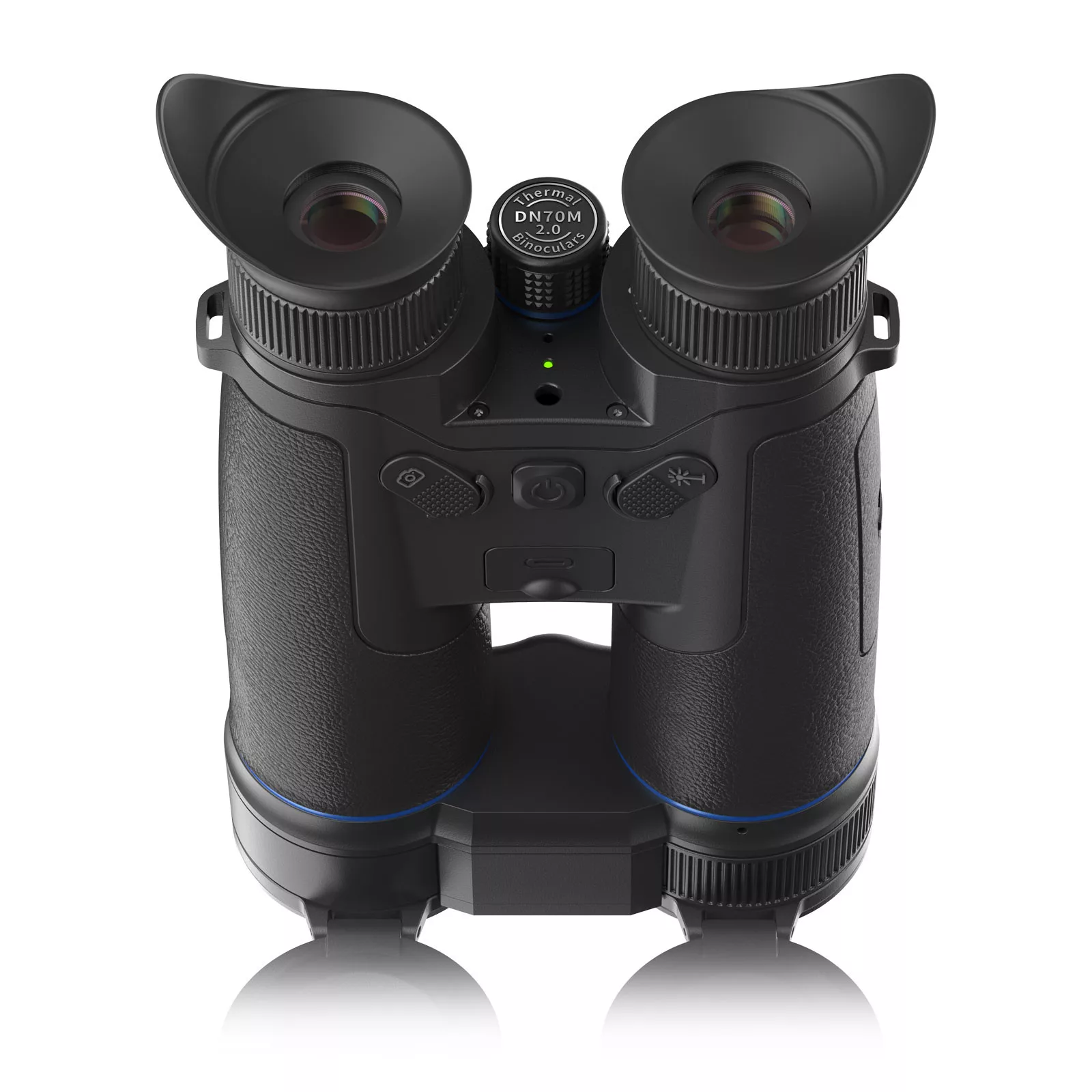

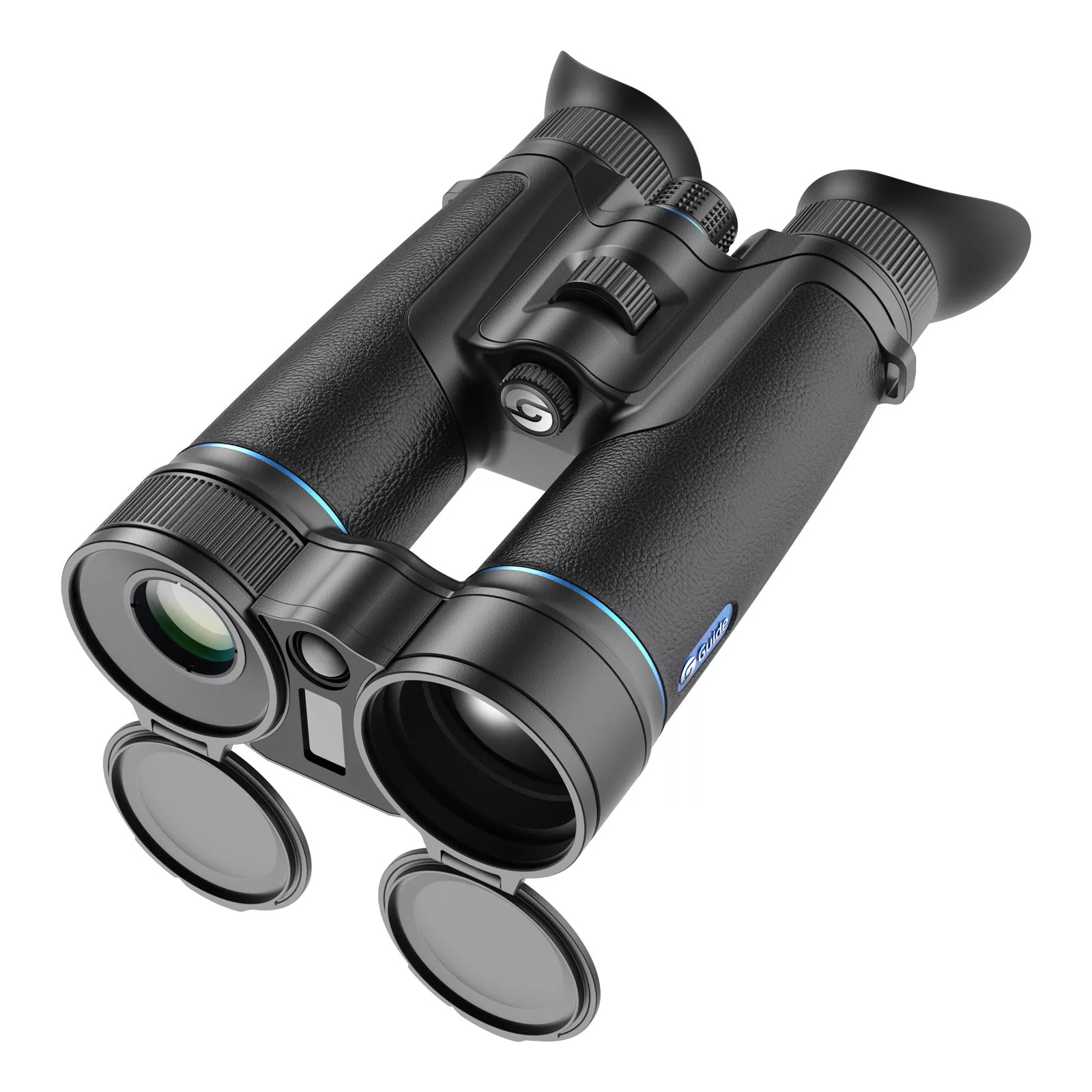

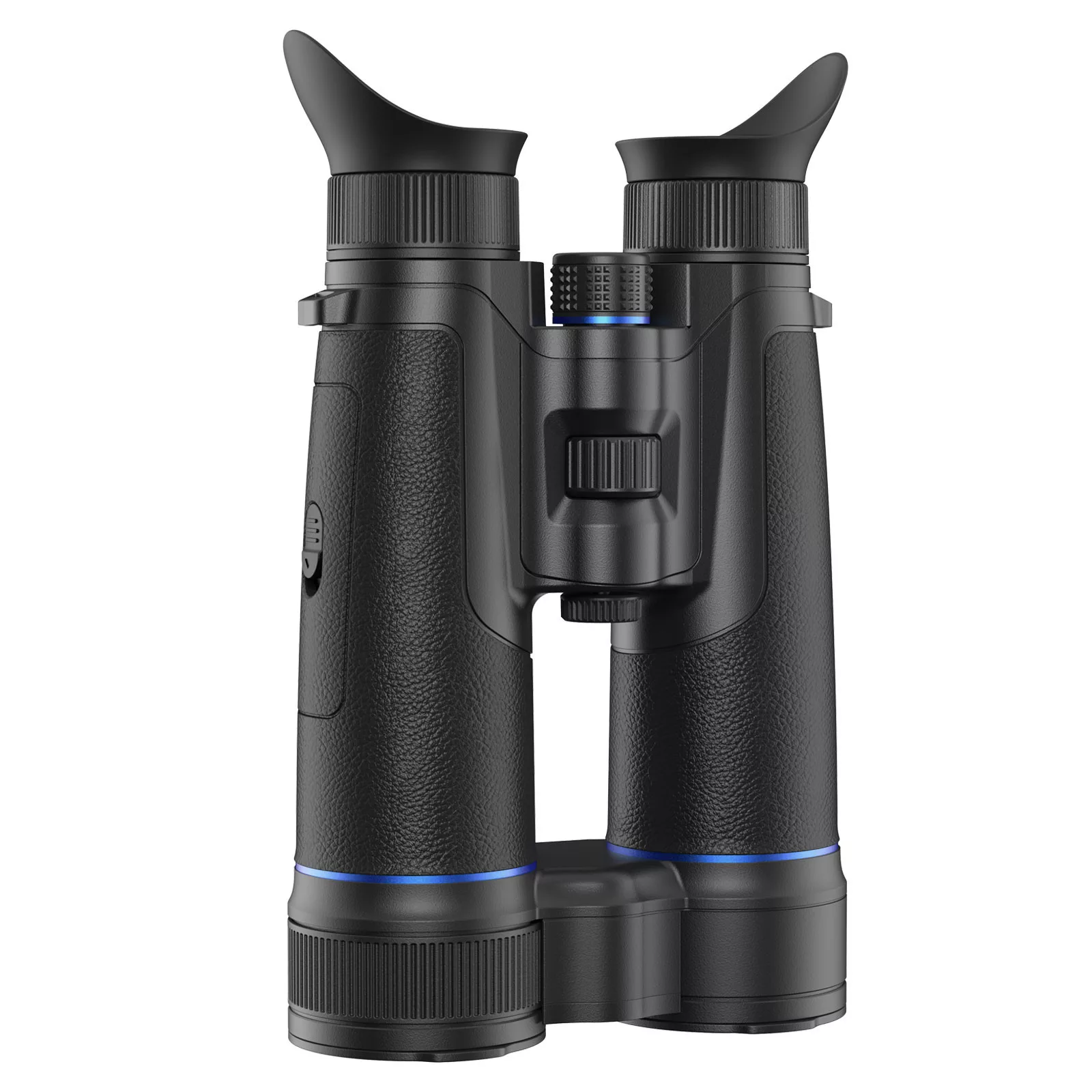

Guide DN70M 2.0 Digital Night Vision and Thermal Binoculars

Name: Guide DN70M 2.0 Digital Night Vision and Thermal Binoculars
Brand: Guide
SKU: GUIDN70M20
Price: 1396.37 EUR
Availability: OutOfStock

Item number:

GUIDN70M20

Guide DN70M 2.0 Digital Night Vision and Thermal Binoculars

Discontinued

Please consult with legal authorities about the usability for hunting purposes!

User's Guide :

Thermal sensor:

256x192 12μm

Thermal sensor NETD :

30 mK

Screen:

1920×1080 AMOLED

Magnification interval (x) :

4.5 – 43.2

Lens:

70mm/F1.8 NV, 25mm/F1.0 thermal

Horizontal field of view (°) :

5.9° NV, 6.6° Thermal

More details

1 396.37 EUR

Not available for purchase!

Leasing enquiry

Manufacturer's warranty: 30 months manufacturer's warranty

Details

The Guide DN70M 2.0 delivers both a thermal sensor and a 4K Ultra HD viewing experience with crisp, detailed images both day and night. Equipped with a powerful 70 mm objective lens, 4K CMOS sensor, and AMOLED display, it ensures vivid, true-to-life visuals. In low-light conditions, the built-in infrared illuminator enhances detection and identification of distant targets. It's thermal module enables users to detect the environment's wildlife fast. With its IP67 rugged housing, laser rangefinder (up to 1200 m), and 128 GB internal storage, it is the ideal choice for hunting, wildlife observation, and night surveillance.

Key Features

4K CMOS sensor + AMOLED display
256x192 px thermal sensor
70 mm high-aperture objective lens
Clear, vivid images day and night
Infrared illuminator for low-light use
Built-in laser rangefinder (up to 1200 m)
128 GB internal memory, photo & video recording
Rugged IP67 waterproof housing

Data

User's Guide :

Thermal sensor:

256x192 12μm

Thermal sensor NETD :

30 mK

Screen:

1920×1080 AMOLED

Magnification interval (x) :

4.5 – 43.2

Lens:

70mm/F1.8 NV, 25mm/F1.0 thermal

Horizontal field of view (°) :

5.9° NV, 6.6° Thermal

Data storage:

256 GB memory

Base magnification (x):

5.4x night vision, 4.5x thermal

Tripod thread:

1/4 inch

Eye relief:

20 mm

Bluetooth:

yes

Plugs:

USB Type C

Digital zoom:

Diopter compensation:

-6 - +6

Other properties:

Image modes: IR, Visible, Fusion 1, Fusion 2, Fusion 3
Built-in mic, compass, gyroscope, Bluetooth

Night vision working method:

digital

Power supply:

2 replaceable 18650 batteries

Detection distance :

1300 m both modules

Manufacturer:

Guide

Manufacturer's warranty:

30 months manufacturer's warranty

Manufacturer's article number:

DN70M 2.0

Device structure:

Binoculars

Image repetition frequency:

50 Hz

Screen color modes:

IR: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia; Visible: Day, Night, Low-light

Exit pupil:

58-72mm

Field of view (°):

5.9°×3.5° NV, 6.6°x4.0° thermal

Dimensions:

216×133×64 mm

Microphone:

built-in

Working / storage temperature:

-20°C to 50°C / -

Interpupilar distance:

58 - 72 mm

Sensor:

3840×2160 2µm , 4K UHD sensor

Color:

black

In the box:

Device, carrying bag, shoulder strap, 2 replaceable 18650 batteries, Battery charger, USB Type-C cable

Rangemaster options:

1500 m

Rangefinder:

LRF

Weight (g):

914

Operating time:

up to 5 hours

Water resistance:

IP67

Wi-Fi:

2.4G, 5G
