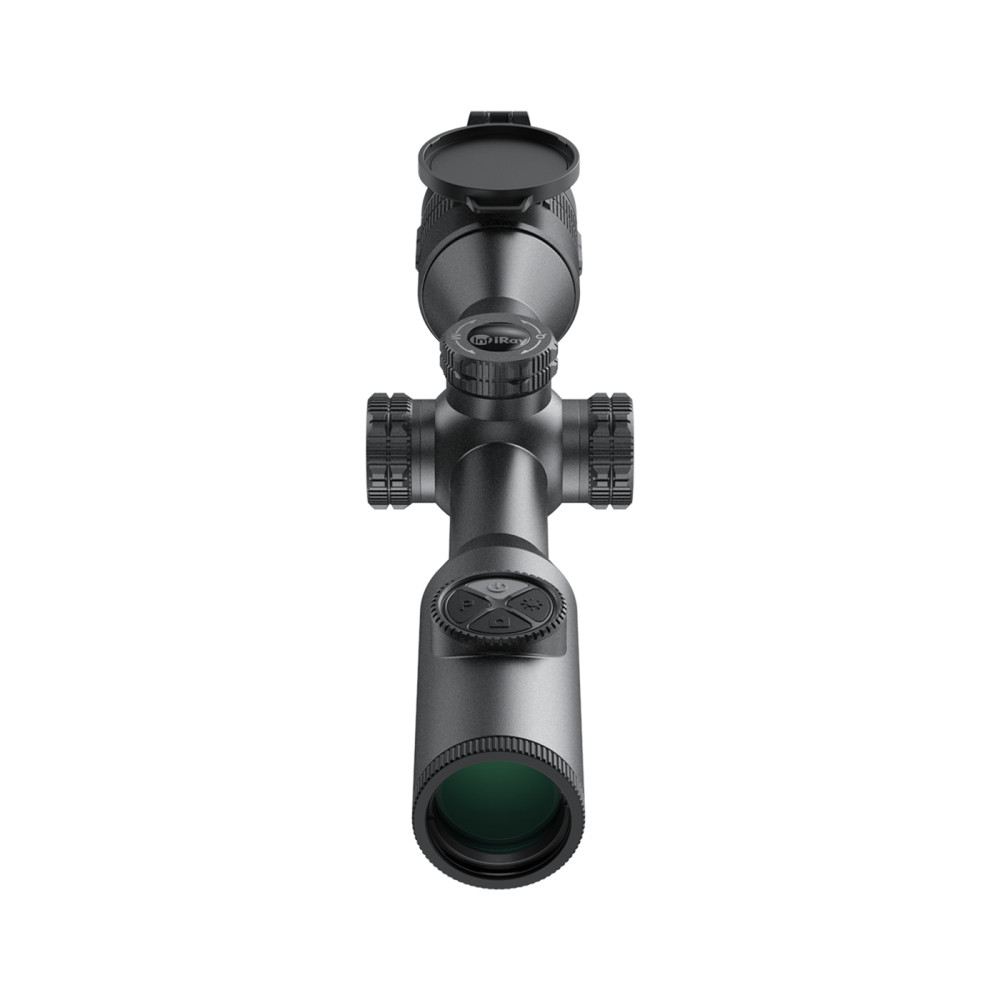

InfiRay Tube TL35 V2 thermal riflescope with LRF module and 18500 battery kit

Item number:
IRATL35V2ILR12cs
InfiRay Tube TL35 V2 thermal riflescope with LRF module and 18500 battery kit
InfiRay Tube TL35 V2 thermal riflescope with LRF module and 18500 battery kit
InfiRay Tube TL35 V2 thermal riflescope with LRF module and 18500 battery kit
InfiRay Tube TL35 V2 thermal riflescope with LRF module and 18500 battery kit
InfiRay Tube TL35 V2 thermal riflescope with LRF module and 18500 battery kit
InfiRay Tube TL35 V2 thermal riflescope with LRF module and 18500 battery kit
InfiRay Tube TL35 V2 thermal riflescope with LRF module and 18500 battery kit
InfiRay Tube TL35 V2 thermal riflescope with LRF module and 18500 battery kit
InfiRay Tube TL35 V2 thermal riflescope with LRF module and 18500 battery kit
InfiRay Tube TL35 V2 thermal riflescope with LRF module and 18500 battery kit
InfiRay Tube TL35 V2 thermal riflescope with LRF module and 18500 battery kit
InfiRay Tube TL35 V2 thermal riflescope with LRF module and 18500 battery kit
InfiRay Tube TL35 V2 thermal riflescope with LRF module and 18500 battery kit
Discontinued

Please consult with legal authorities about the usability for hunting purposes!

Tube diameter (mm)
Tube diameter (mm):
30
Riflescope front lens diameter
Riflescope front lens diameter:
35 mm
User's Guide
User's Guide :

Hungarian version

Thermal sensor
Thermal sensor:
384x288 12µm
Thermal sensor NETD
Thermal sensor NETD :
25 mK
Screen
Screen:
1024x768 OLED
Magnification interval (x)
Magnification interval (x) :
3 – 12
Lens
Lens:
35 mm fókusztávolság
Horizontal field of view (°)
Horizontal field of view (°) :
7.5
More details
2 172.26 EUR
Not available for purchase!
Leasing enquiry
Manufacturer's warranty: 3-year general warranty for the device, 10 years for the sensor, 2 years for the battery
Set offers
  • Accessories
  • Description and data
  • Videos
We also recommend the following product as an accessory
Details

With ILR1200-1 Bluetooth LRF module.



The Tube series is a cutting-edge thermal imaging riflescope, which has a similar appearance with  the Day riflescope. The state-of-the-art design is especially for professional hunters who value  traditions and seek technological superiority.




High Image Quality

The Tube Series is designed for faultless operation in extreme weather  and temperature conditions. Whether or not the environment is  freezing cold or blistering hot, the image retains its contrast and vivid  colors without loss of frame rate.


User-friendly Interface

Rotary knob offers smooth zooming  while four navigation keys offer  optimal feeling of control.


Picture-in-Picture Function

The Picture-in-Picture function improves accuracy by  providing a 2x-magnified image of the reticle area at the top  of the display. It helps to zoom in on a target while maintaining  visibility of the entire field of view.





Ultraclear Mode

Built-in ultraclear mode is designed for  bad weather conditions, such as heavy  fog and rain. It will make the Tube series  more sensitive and capable of providing  more details.



Reliable Full Aluminum  Housing

The Tube series housing is made of aluminum  and is designed to improve reliability. Designed for rugged reliability, Tube riflescopes boast full, reinforced yet lightweight metal construction. Precision-fabrication of housing elements ensures flawless field performance.


Mounts on Standard 30 mm  Scope Rings

Applicable for 30mm diameter pipe, the newly designed tubular appearance allows the Tube series to be installed on standard 30mm scope rings, with simple operation, stability and reliability.Sufficient Operation Time and  Flexible Battery Choice

The working time of bulit-in battery is up to 13 hours,  and the replaceable 18500 battery will provide an  additional 2.5 hours of operation.






Extreme Detection Range

It combines the advanced thermal imaging  sensor and the high-quality germanium  optical lens to provide an unprecedented  detection range up to 1800 meters, even in  complete darkness.


12μm Pixel Pitch

The high-performance detector with the pixel pitch of 12μm is embedded


Built-in Video Recorder and  WiFi Connection

16 GB internal storage provides 24 hours of video recording capability, or  approximately 20,000 images of photo storage. WiFi mode allows for up  to 4 connections simultaneously.


Learn more
Data
Tube diameter (mm):
30
Riflescope front lens diameter:
35 mm
User's Guide :

Hungarian version

Thermal sensor:
384x288 12µm
Thermal sensor NETD :
25 mK
Screen:
1024x768 OLED
Magnification interval (x) :
3 – 12
Lens:
35 mm fókusztávolság
Horizontal field of view (°) :
7.5
Data storage:
16 GB built-in memory
Base magnification (x):
3,0
Material:
aluminium
Eye relief:
70 mm
Riflescope magnification:
3.0 - 12.0x
Plugs:
USB-C charging and data transfer
Digital zoom:
2x, 3x, 4x
Diopter compensation:
-4 - +4 dpt
Other properties:

Photo and video recording (24 hours video or 20.000 picture)
Video output
WiFi

Front lens tube diameter 58 mm

Power supply:
built-in, rechargeable battery + external 18500 battery
Detection distance :
Human (1.7 x 0.5 m): 1816 m
Manufacturer:
InfiRay
Manufacturer's warranty:
3-year general warranty for the device, 10 years for the sensor, 2 years for the battery
Image repetition frequency:
50 Hz
Screen color modes:
5 modes
Field of view (°):
7.5°x 5.6°
Shock resistance:
6000J 1000 G (g=9,8 m/s2)
Sensor:
384x288 pixel, uncooled Vox microbolometer , 12 µm pixel size; NETD: <= 25 mK
Color:
black
Picture resolution:
768 x 576
Video resolution:
768 x 576
In the box:

thermal riflescope, 2 pcs of 30 mm mounting rings, ILR1200-1 Bluetooth LRF module with Q-R clampin, soft case with shoulder strap, charger and video cable, lens cleaning cloth, 2 pcs of 18500 and 2pcs of RCR123 battery and a two bay charger

Rangefinder:
LRF
Weight (g):
950
Operating time:
up to 10 hours
Water resistance:
IP67
Learn more
Battery usage

Charging and using of Infiray Tube scopes with the double battery :

The device has two batteries: a built-in main one and a replaceable unit that increases operating time. On the monitor, the battery icon on the left indicates the replaceable battery, and the one on the right indicates the charge of the built-in battery. During operation, the scope's software starts from the main battery every time, then checks the charge of the replaceable battery, and then switches to it, so it first drains the replaceable battery, only then the built-in battery.
If the built-in main battery is charged but the replaceable one is already discharged, the device will continue to work, albeit with a shorter operating time.
IMPORTANT: Only the built-in battery is charged via the USB-C cable, the additional replaceable battery must be charged with the included external charger! Failure to do that, naturally leads to a shorter operating time.
In the opposite case, the device cannot be put into operation with a charged replaceable battery, if the built-in main battery is discharged.  The software will not load, therefore which would switch to the additional battery, so always pay attention to the charge of the device's built-in battery - icon on the right!
