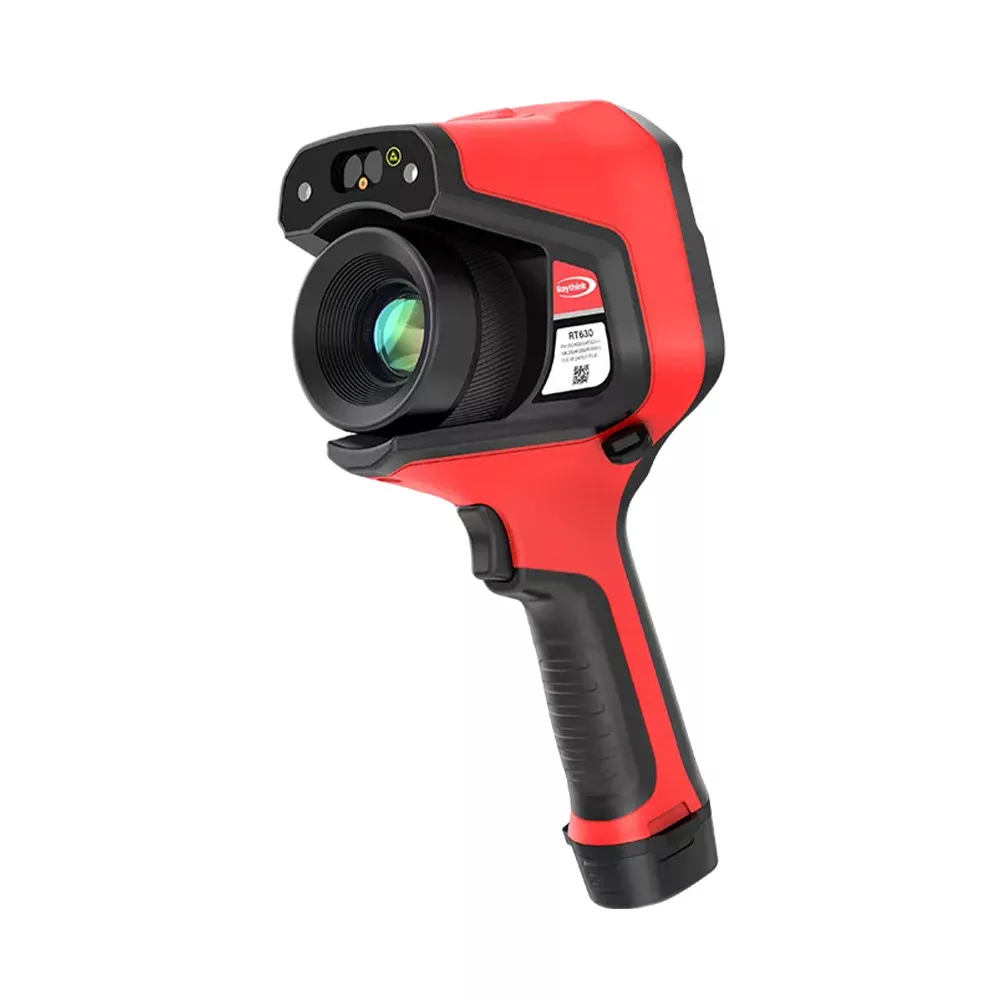

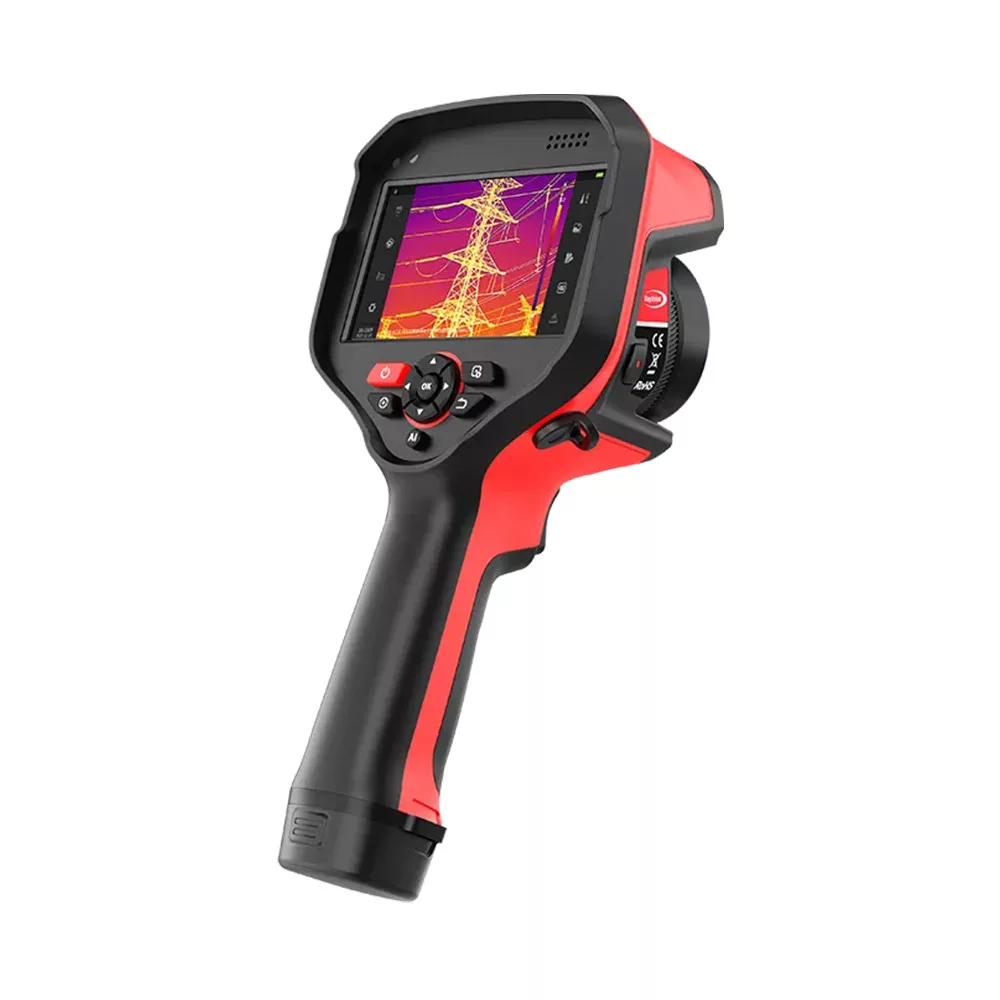

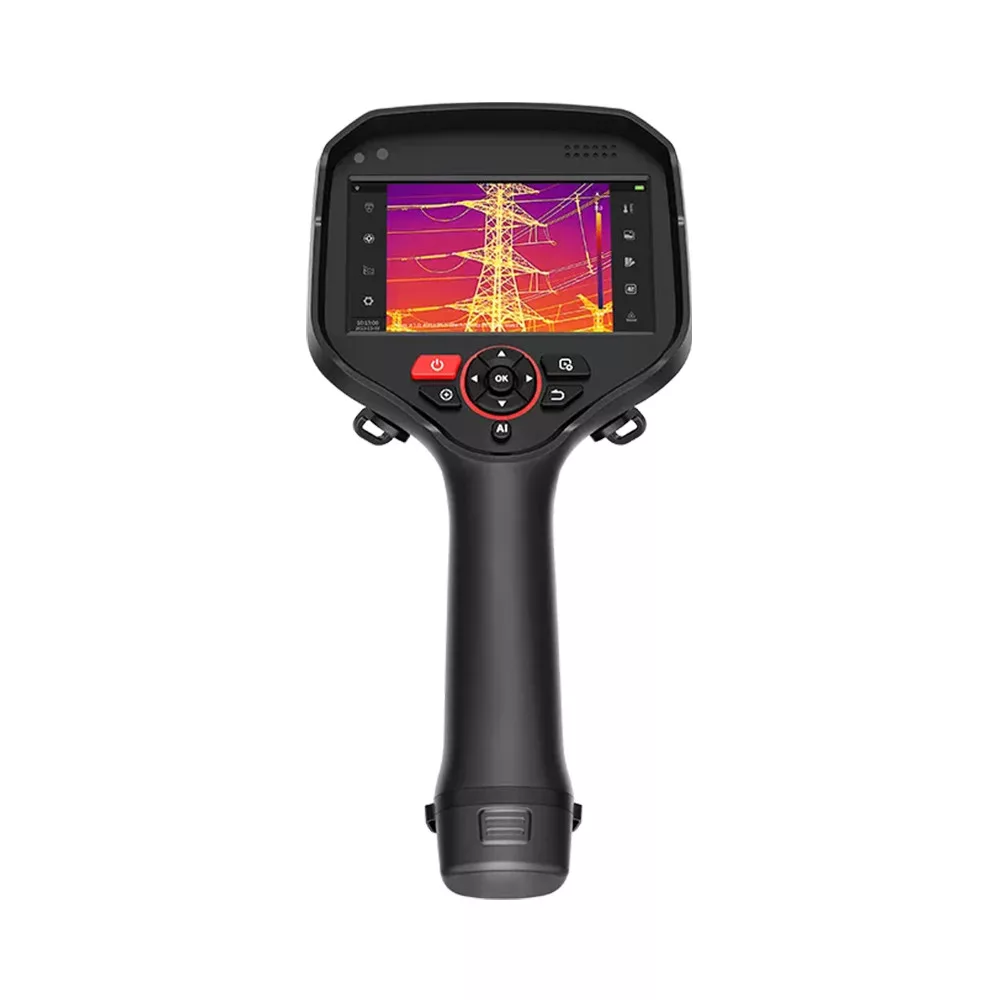

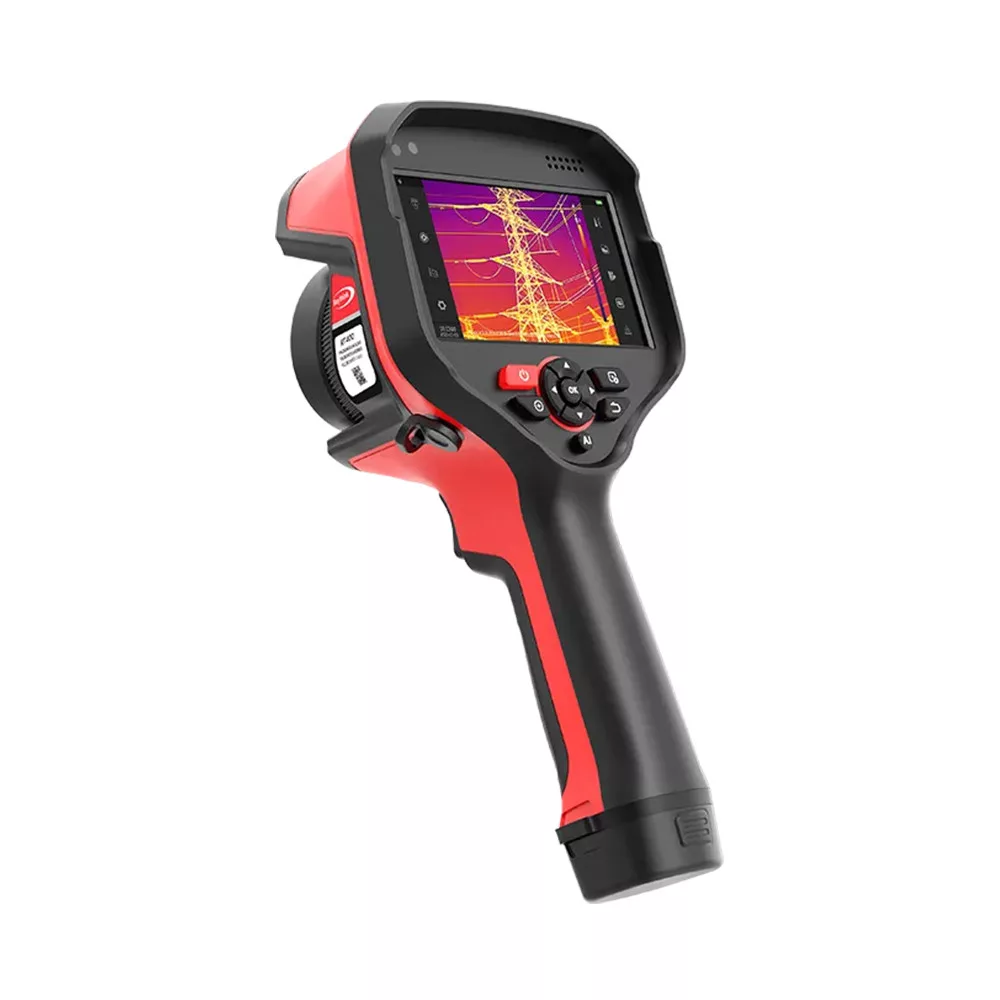

Raythink RT630 industrial thermal camera
Raythink RT630 industrial thermal camera
7 254.37 EUR
  1. Industrial thermal camera
  1. Thermal Camera, Night Vision
  2. Industrial thermal camera

Raythink RT630 industrial thermal camera

Item number:
RTKRT630
Raythink RT630 industrial thermal camera
Raythink RT630 industrial thermal camera
Raythink RT630 industrial thermal camera
Raythink RT630 industrial thermal camera
Raythink RT630 industrial thermal camera
Raythink RT630 industrial thermal camera
Raythink RT630 industrial thermal camera
No stock
When do I get it?
When do I get it? :
Orderable
Thermal sensor
Thermal sensor:
640x512 12μm
Thermal sensor NETD
Thermal sensor NETD :
35 mK
Screen
Screen:
5 inch 1280×720 OLED
Weight
Weight:
1 300 g
More details
7 254.37 EUR
Leasing enquiry
Manufacturer's warranty: 3-year general warranty for the device, 10 years for the sensor, 2 years for the battery
Set offers
  • Accessories
  • Description and data
  • Videos
Related products
Details

RT630 Expert Thermal Camera

Equipped with a new-generation detector with a high resolution of 640×512 and a NETD as low as 35mK, the new RT630 can capture more subtle hotspots, and display sharper and cleaner thermal images.
The device has rich and powerful features such as Android OS, trend analysis, and area measurement.
It is a new strong tool for expert-level full-scene analysis.

Clear Thermal Images, Precise Temperature Measurement

Equipped with a 12μm uncooled infrared detector, with a resolution of 640×512, supporting super resolution.
NETD is as low as 35mK, and temperature measurement precision is ±2°C or ±2% of reading (whichever is the maximum value).

Various Lenses and Fast Focusing

Standard 25° lens, with optional wide-angle, telephoto, and super telephoto lenses.
Support macro lenses, flexible for diverse scenarios.

Functional Upgrade to Improve Efficiency

Android operating system, more convenient to operate
Support intelligent image stabilization, making temperature measurement images more stable
Support laser rangefinding and area measurement.
Support up to 20 points/lines/areas to analyze more temperature details in the screen.

Learn more
Data
When do I get it? :
Orderable
Thermal sensor:
640x512 12μm
Thermal sensor NETD :
35 mK
Screen:
5 inch 1280×720 OLED
Weight:
1 300 g
Data storage:
64GB SD card, with a maximum extension capacity of 2TB
Tripod thread:
yes
Bluetooth:
yes
Plugs:
USB 3.0, Micro HDMI
Digital zoom:
1‒10 times
Other properties:

Picture modes: Thermal imaging, PIP, thermal fusion, visible light

Power supply:
10000mAh lithium-ion battery, replaceable
Recording file formats:
.MP4 . JPG . IRV
Resolution:
4224×3136 (13 megapixel digital camera)
Manufacturer:
Raythink
Manufacturer's warranty:
3-year general warranty for the device, 10 years for the sensor, 2 years for the battery
Manufacturer's article number:
T630
Device structure:
Handheld camera
IFOV:
0.68 mrad
Image repetition frequency:
30 Hz
Screen color modes:
19 modes
Field of view (°):
25
Measurement properties:

IFOV: 0.92 mrad

Measurement Range:



Low temperature range: -20°C~+150°C
High temperature range: 100°C~650°C
Automatic (optional: : -20~1500°C)

Measurement Accuracy: ±2°C or 2%
Temperature Scale: Automatic, manual, accurate

Dimensions:
14.4 × 12.9 × 30.7 cm
Microphone:
yes
Spectral (wavelength) range:
7.5- 14 µm
Sensor:
480 x 360 pixel, 12 pixelsize NETD: 35 mK
In the box:

thermal camera, USB cable, 64 GB micro SD card, hand strap, Bluetooth headset

Rangemaster options:

Laser Rangefinding: 905nm ;  0.05-50 m ; accuracy: ±1 mm

Operating time:
up to 3 hours
Water resistance:
IP54
Wi-Fi:
yes
Learn more
