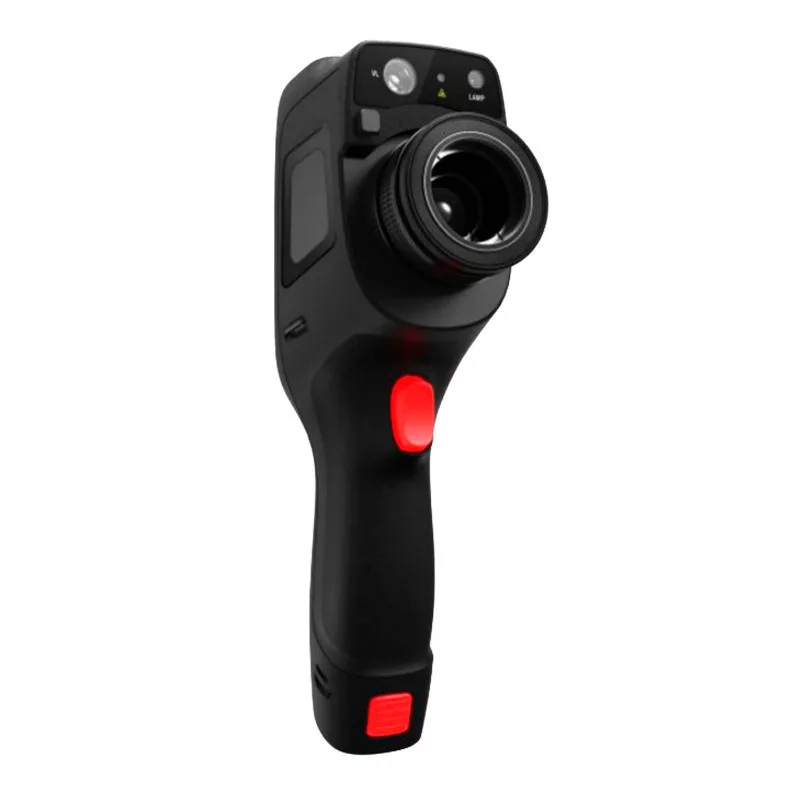

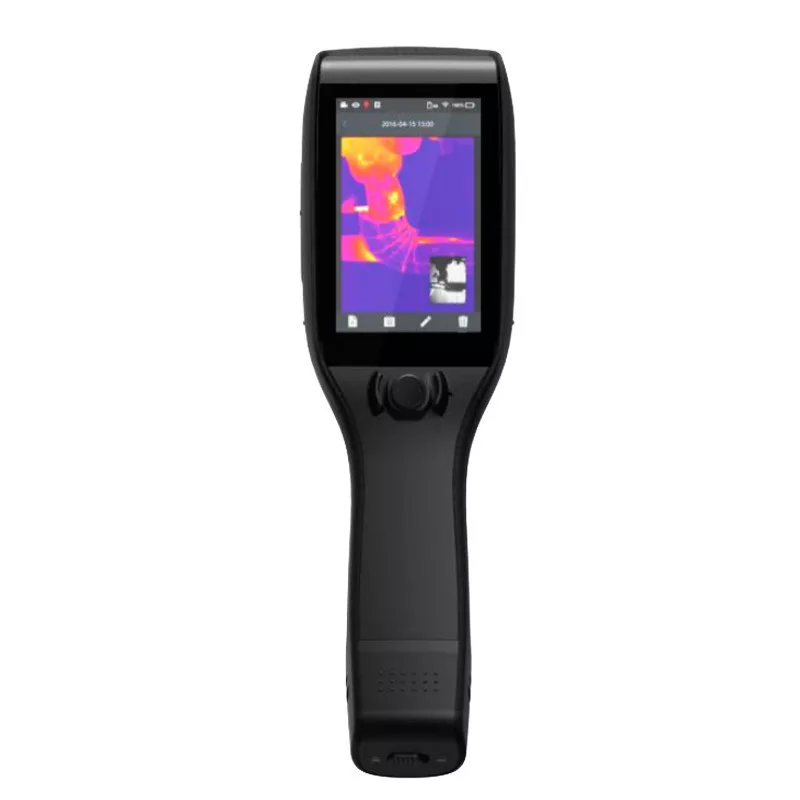

Intelligent thermographic industrial infrared camera
Guide's M series of industrial thermal cameras continues the tradition
established by its predecessors, the building blocks of which are a combination of excellent quality and innovative features.
It is particularly popular among building maintenance workers, for which its viewing angle and thermal sensitivity make it perfectly suitable.
The outstanding individuality of the device lies in its exquisitely covered and tactile housing and ergonomic design. What's more, its simple user interface and intelligent navigation button give even the novice user the feeling of professional confidence during use. With the help of the built-in main camera and light source, you can easily take digital photos with a resolution of 5 MP / 640x480 pixels, which can then be compared with thermal images - helping to identify certain problems more easily. The professional documentation is expanded by the option of audio notes next to images, and even a thermal image video. The thermal camera also has a built-in memory and its capacity can be expanded up to 32 GB. The built-in laser pointer comes in handy for locating hot spots on site.
The measurements can be analyzed in countless ways with the device, it is capable of finding the coldest and highest temperature points, and an average temperature display is also available. Various alarm functions can also be set, so that the thermal camera gives an automatic sound signal

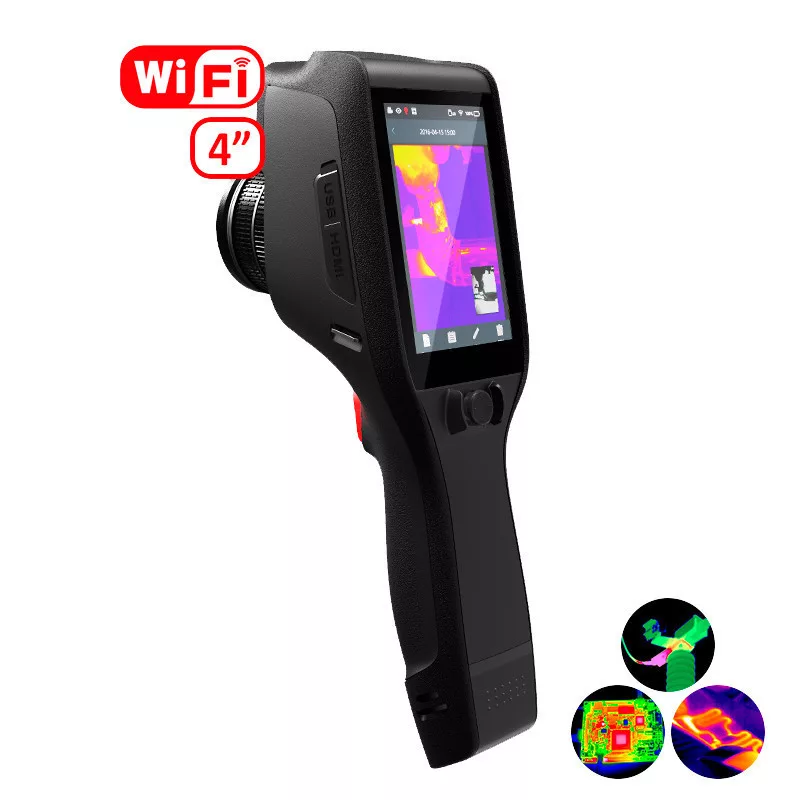

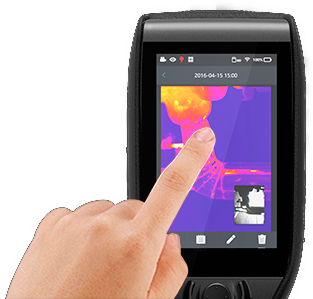

even when the temperature is above certain values or when the temperature is very low. The 4" touch screen guarantees extremely fast setting and parameterization. Among the 8 selectable color palettes, there is a good illustration mode for every analysis case.

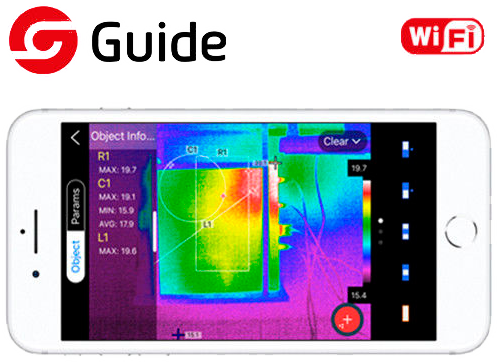

Micro USB output and micro HDMI are also available, in addition, the image can be transmitted via USB to a PC or even to a mobile phone via WiFi with the appropriate application.
Professional analysis on PC
Recording thermal images with an industrial thermal camera is only the first step. Only then does the real work begin. The discovery of problems and the professional analysis become really serious when we can examine the images of the Guide thermal cameras with the appropriate PC application. Guide's analyzer enables complex testing, error detection and report creation.
- various thermal image and thermal video sources
- image processing
- video analysis
- various settings
- creating a report in PDF or WORD
The PC software can be downloaded from here.
