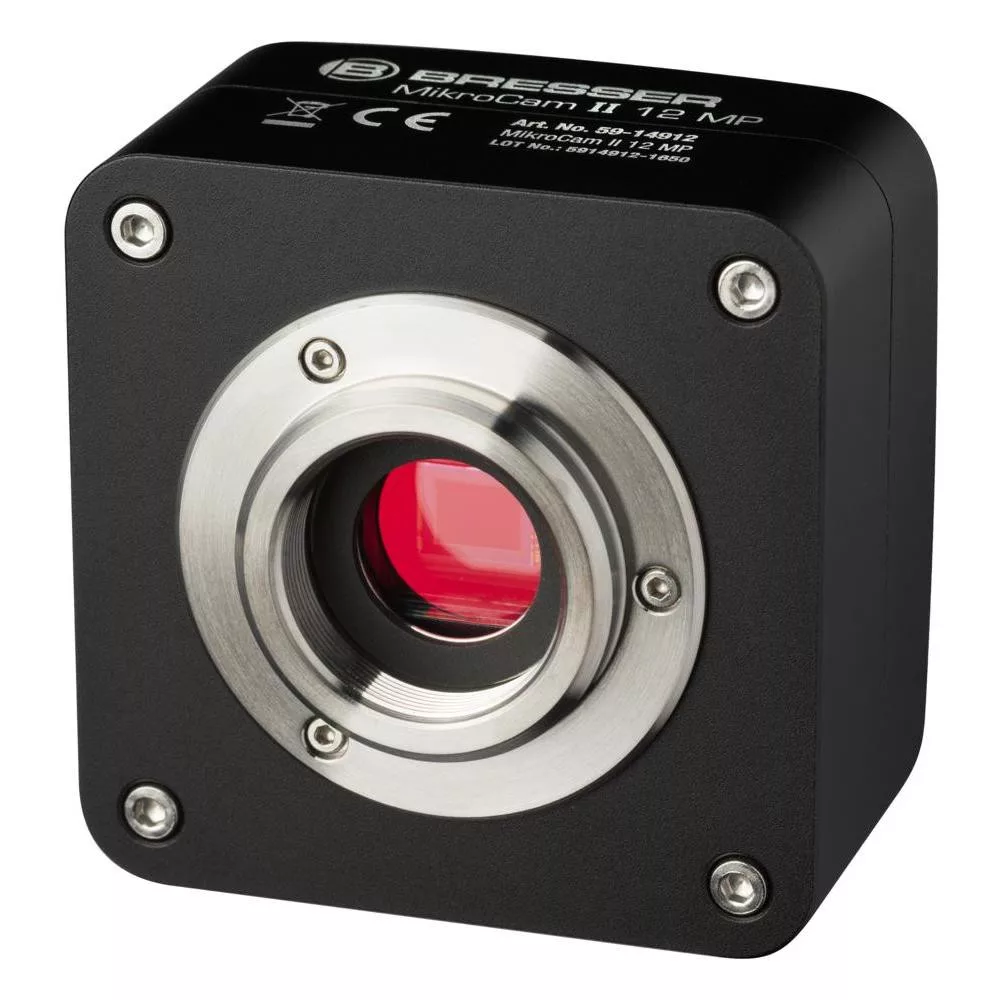

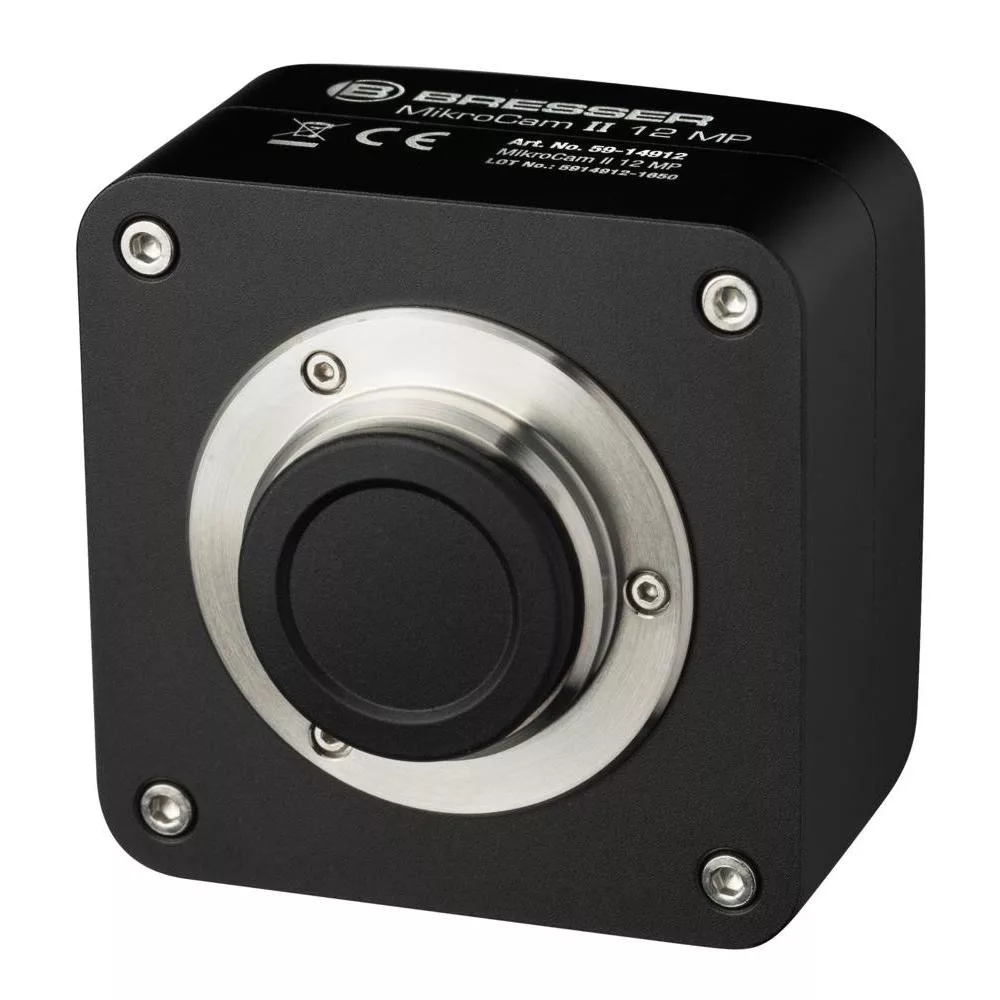

Bresser MikroCamII Microscope Camera 12MP

The modern Sony® CMOS sensors give brilliant colours with very low noise and is the perfect choice for any application where true natural colours are important. The included imaging software has multiple adjustments for the capture of still images and videos. The integrated measuring* routine allows for a measurement in the camera live image. The software can be operated in the following languages: German, English, French, Polish, Russian, Turkish, Chinese. The camera housing includes the c-mount adapter thread. For use with 23.2 mm adaptations, we recommend the optional, variable 0,5x reducer (item no. 5914005). For special applications, the camera can also be mounted using the 1/4'' camera tripod thread.

The BRESSER MikroCamII are equipped with a USB 3.0 port, compared to the MikroCam SP. This enables up to 8 times faster data transfers to the PC compared with the USB 2.0 standard. The camera is able to deliver more than 25 frames per second (depending on resolution, exposure time and PC performance). This is especially important when observing live microorganisms. In addition to this, the camera is exceptionally sensitive. Even in low light conditions (high magnifications, contrast methods) the camera can be operated with short exposure times.

FEATURES

• High quality metal housing
• Numerous software functions, e.g. measurement, focus-stacking (combines several images for more depth of focus), mosaic (for larger image fields)
• Image and video capture, incl. time-lapse function
• Good compatibility with different microscopes

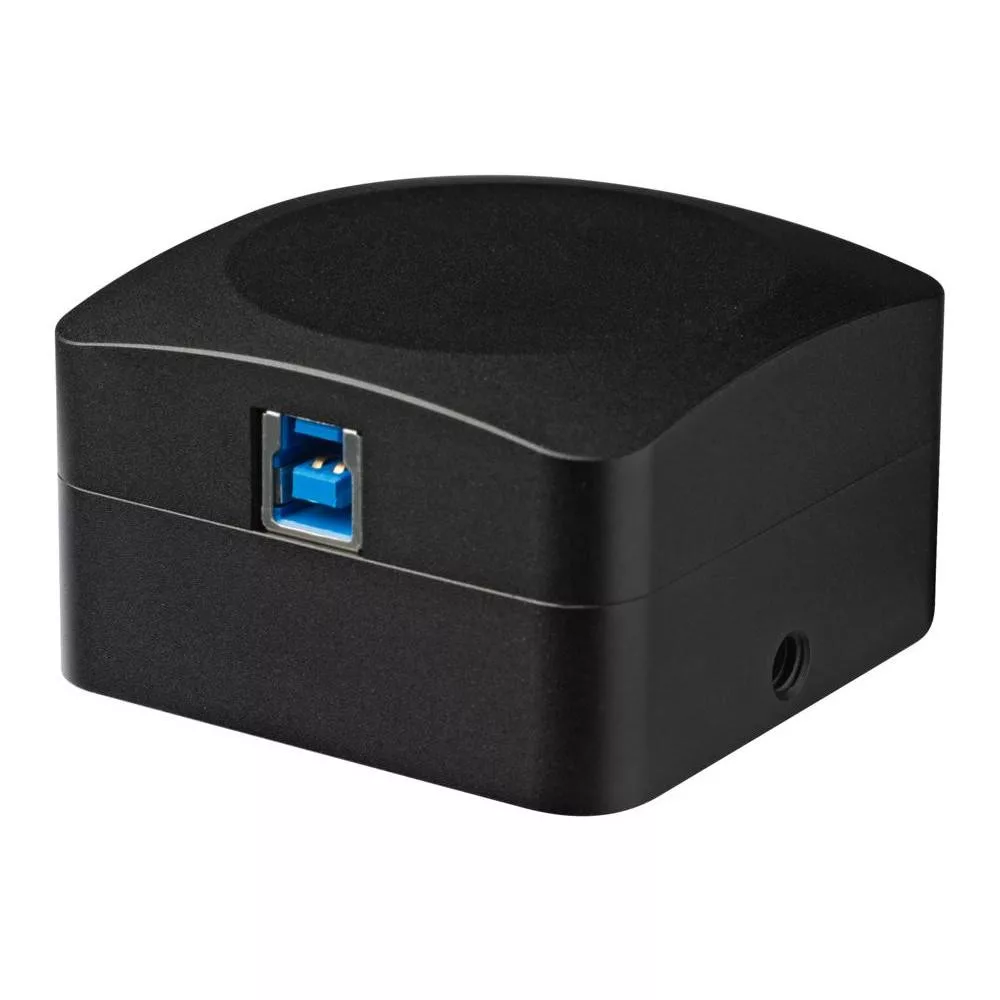

• Highspeed USB 3.0 connection
• Modern Sony® IMX226 sensor 7.53 mm x 5.64 mm (1/1.7'')

SYSTEM REQUIREMENTS

• Windows 10 or 11
• Intel i3, i5, i7 or i9 CPU from the 6th generation or
• AMD Ryzen CPU
• Optical Disk Drive or internet connection for software download
• USB 3.0, 3.1

SCOPE OF DELIVERY

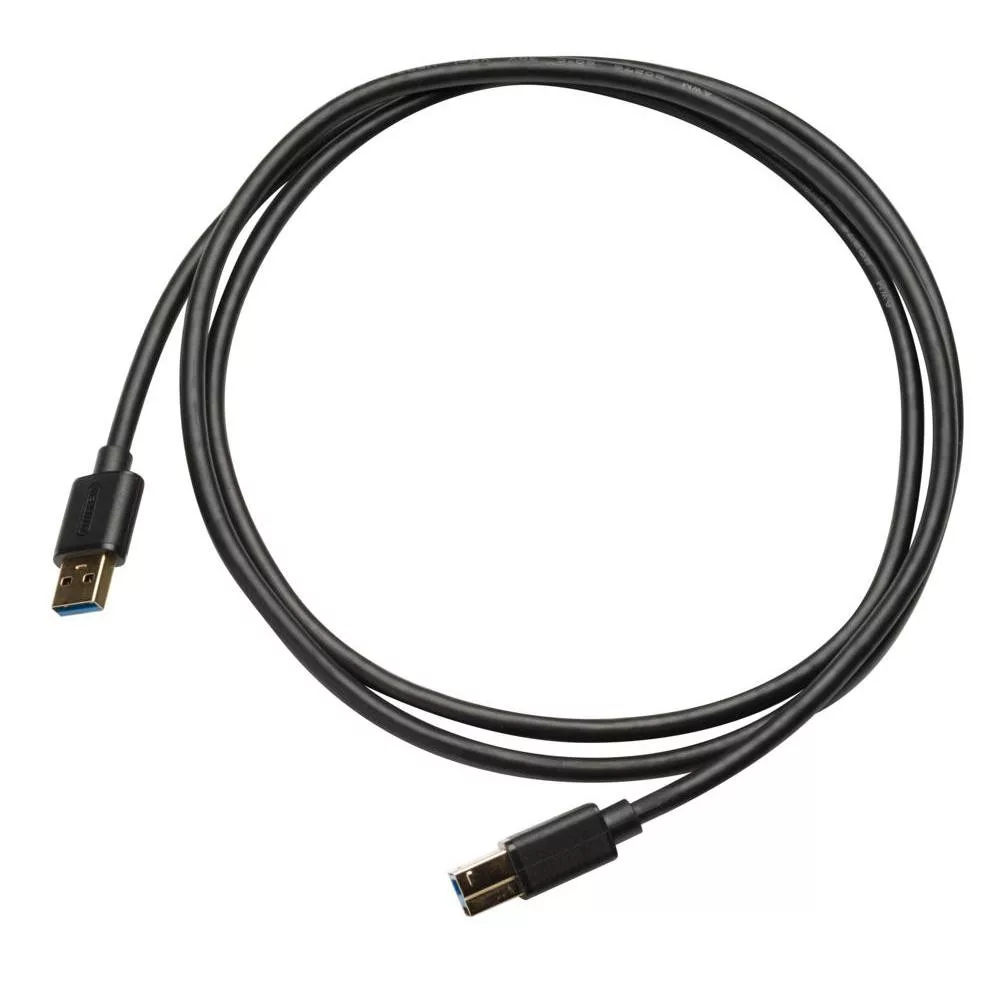

• Camera head, USB 3.0 cable
• 23.2 mm adapter, 30 mm and 30.5 mm adapters
• capture and image processing software
