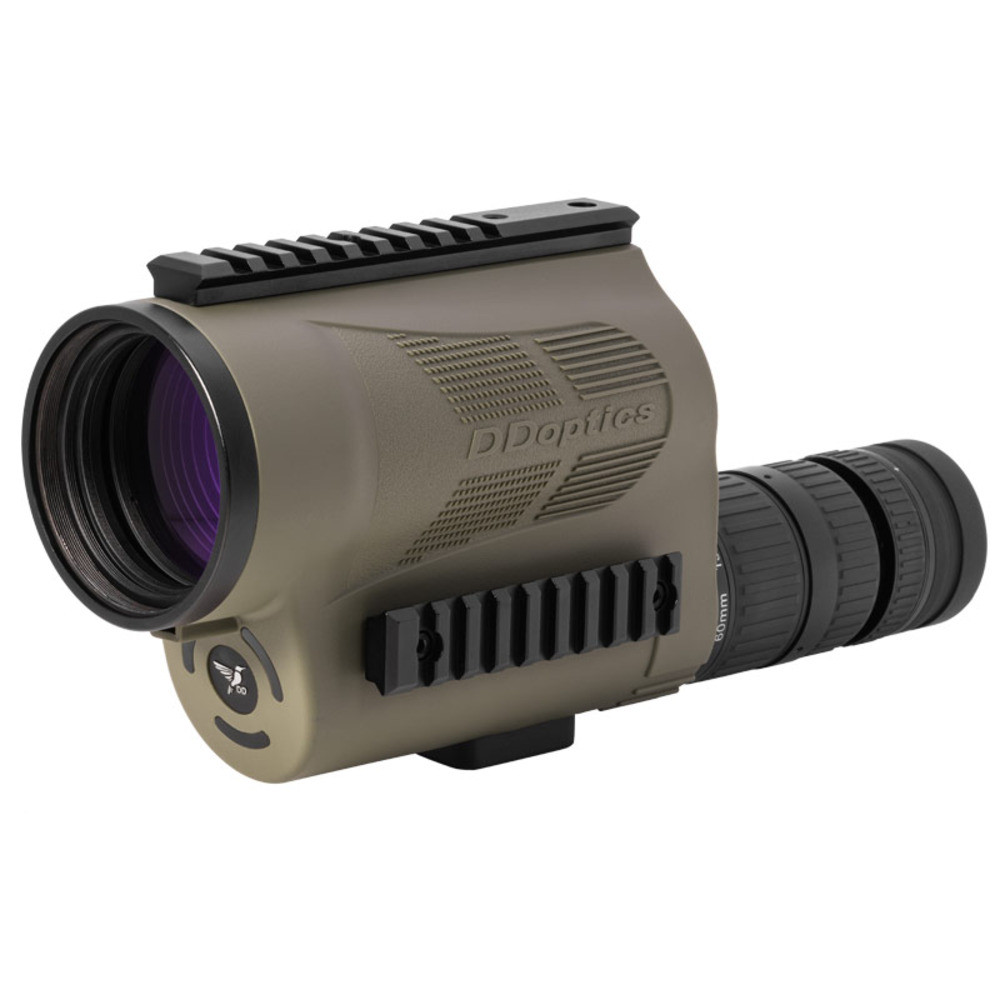

DDoptics | Long range spotting scope DDMP 15-45x60 ED | Tactical Spotter
So-called tactical spotters support a shooter in improving his shooting skills. With the long-range spotting scope DDMP 15-45x60 ED tactical spotter, the spotter can transmit detailed correction information and corresponding instructions to the shooter. This spotting scope by DDoptics has an integrated MIL reticle, a sophisticated eyepiece system with a magnification changer (15x to 45x) and a focusing wheel for optimal image sharpness.
Elaborate eyepiece system for razor-sharp images
The long-range spotting scope has a sophisticated eyepiece system with a magnification changer (15x to 45x) to ensure that each image plane is perfectly aligned with the target and thus provides a razor-sharp image. The focusing wheel is located in the center of the eyepiece and is used to set the optimum image sharpness for the respective distance. The user can precisely adjust the eye distance of the tactical spotter to the eyepiece by means of twist-out eyecups.
Maksutov-Cassegrain optical system - Bright image, high contrast
The spotting scope DDMP Longrange Spotting 15-45x60 ED tactical spotter uses the optical Maksutov-Cassegrain system and thus achieves a very high resolution and extreme contrast values. This system is a type of telescope that collects and focuses light using two mirrors and a concave meniscus lens. No prisms are used in this system. This long-range spotting scope by DDoptics is therefore also predestined for observing planets, stars and other celestial objects. Likewise for the observation of animals and birds. Another advantage of the Maksutov-Cassegrain system: It is compact and light, which guarantees comfortable transport.
Separate focus for image sharpness in all image planes
Image sharpness down to the last detail:
The DDMP 15-45x60 ED Tactical Spotter spotting scope has a separate focusing wheel for adjusting magnification, image sharpness and reticle sharpness.
The fact that each image plane can be focused separately with this long-range spotting scope is a great advantage. With simpler tactical spotters, the sharpness setting for the reticle is often missing, which means that the reticle is blurred in medium magnifications. Of course, this problem does not exist with the DDMP long-range spotting scope.
Extensive range of accessories
There are three dovetail bars on the housing of the DDMP Tactical Spotter, for example to mount ballistic calculators, red dot devices, rangefinders or laser pointers. To protect against light coming in from the side, this long-range spotting scope has a so-called kill flash. This reduces scattered light and reflections and increases contrast, making the target image clearer and sharper. The Killflash also minimizes unwanted reflections from the lenses and eliminates color fringes - particularly advantageous for tactical applications.
Separate focus for magnification, image sharpness and reticle sharpness

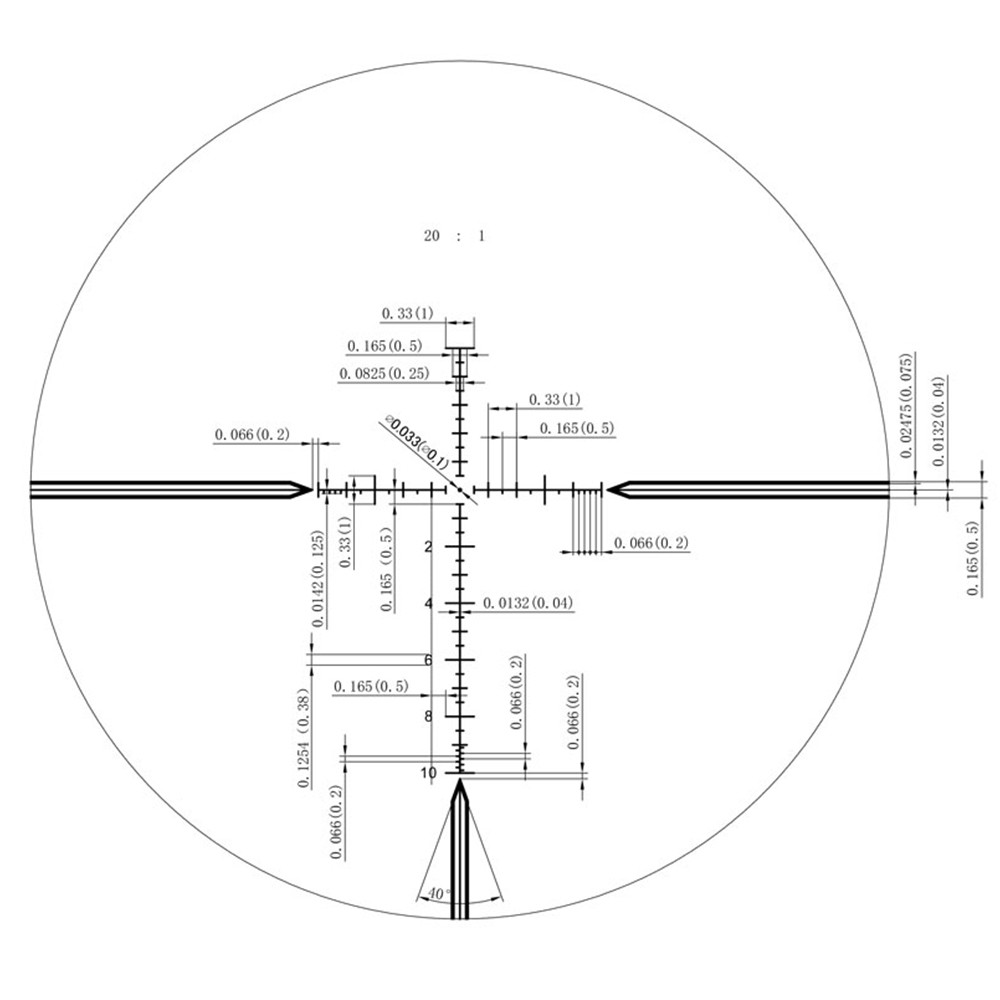

The DDMP Tactical Spotter features an integrated MIL tactical reticle that matches the reticle of DDoptics DDMP scopes. Lying in the first image plane, it increases in size according to the magnification set. Distances can be precisely calculated with the help of different stopping points. The DDMP Tactical Spotter can transmit detailed measurement and correction information to the shooter, who in turn can precisely compensate for point deviations. For this purpose, the lines in the center of the tactical reticle are divided into full, middle and small lines, with a full line equaling 1 MRAD (10cm at 100m). The intermediate lines are divided accordingly (0.5 MRAD: 5 cm, 0.25 MRAD: 2.5 cm).
For robust use
The long range spotting scope DDMP 15-45x60 ED Tactical Spotter available in the camouflage colors olive green and desert sand is waterproof. The housing is made of indestructible magnesium. A special and particularly non-slip and non-slip rubber armor provides additional protection. The shooting results can also be recorded using a mobile phone adapter.
