DDoptics V10 2-20x50 NXT MRAD A4N illuminated riflescope
1 379.18 EUR
1 103.29 EUR
DDoptics V10 2-20x50 NXT MRAD A4N illuminated riflescope
Item number:
DDS442000301
No stock
When do I get it? :
Orderable
Tube diameter (mm):
30
Adjustable parallax:
Yes
Riflescope front lens diameter:
50 mm
User's Guide :
.
Field of view (m):
18.5 - 1.8 m / 100 m
Magnification interval (x) :
2 – 20
Weight:
680 g
20
1 103.29 EUR
1 379.18 EUR
Savings
275.89 EUR
Manufacturer's warranty:
30 years manufacturer's warranty
Set offers
We also recommend the following product as an accessory
Details

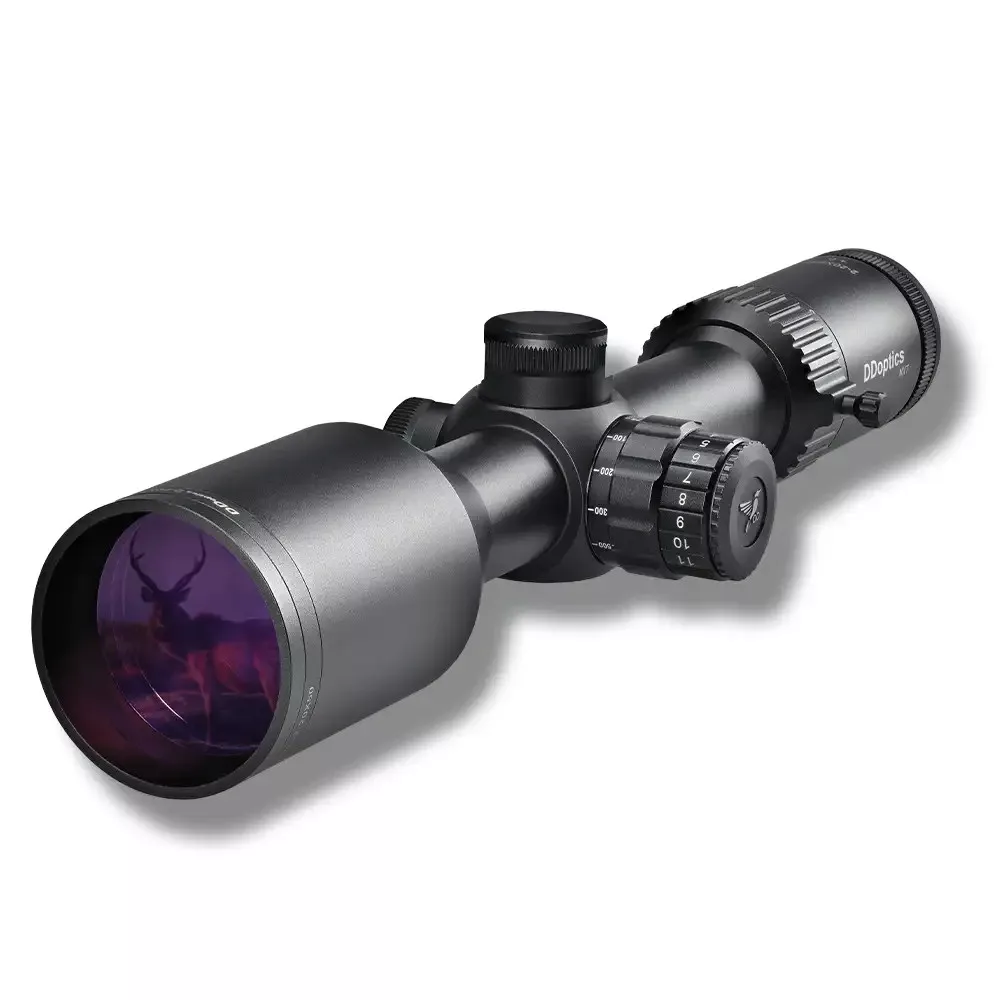

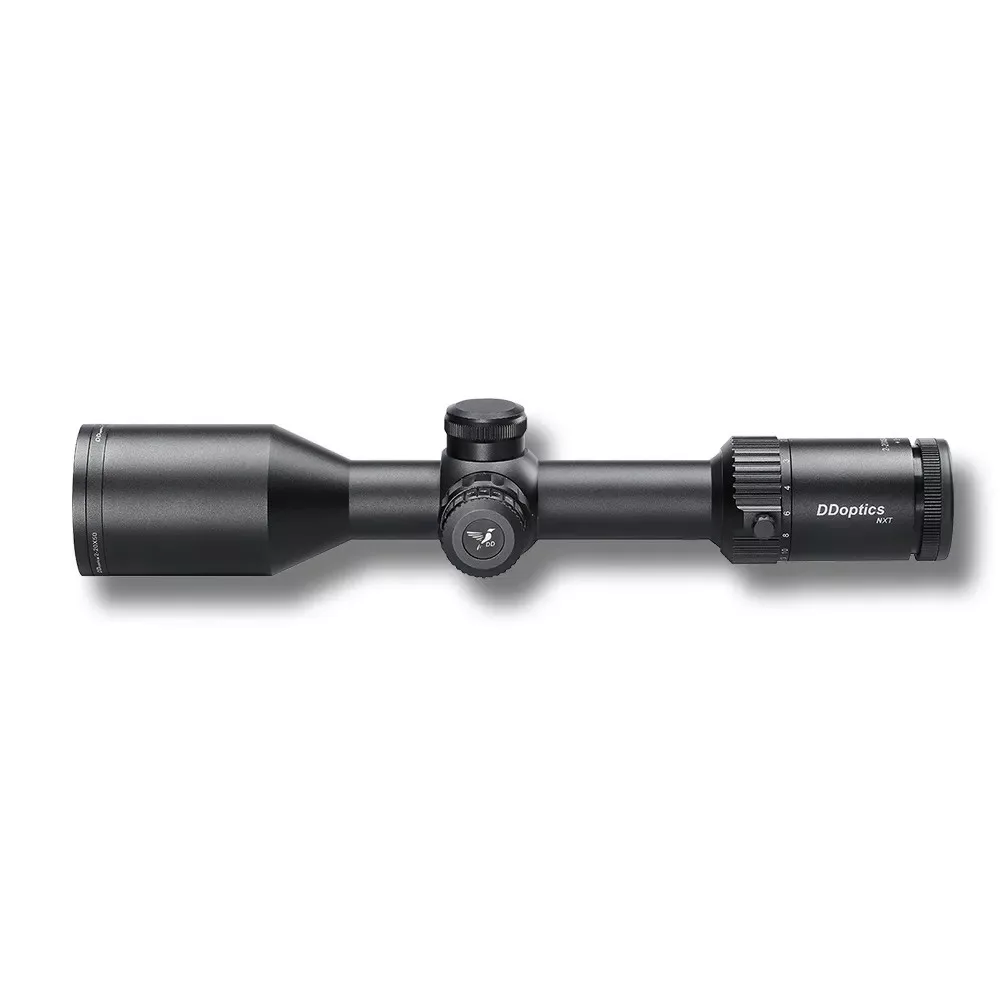

DDoptics riflescope NXT V10 2-20x50 MRAD A4N
Maximum precision and versatility for demanding hunting missions
The DDoptics NXT V10 2-20x50 A4N MRAD riflescope is the perfect choice for hunters looking for precision and versatility in a compact design. This riflescope combines state-of-the-art technology, outstanding optical properties and an optimized design to meet all requirements in hunting use.
Lightweight, compact and powerful
With a length of just 318 mm (31.8 cm), the NXT V10 2-20x50 is one of the "super-short" riflescopes. This design makes it ideal for use with attachments without compromising the handling or balance of the rifle. The larger objective lens diameter of 50 mm also ensures excellent light yield, especially for use in twilight or at night.
Versatile field of application
Thermal imaging attachments: Specially optimized for use with thermal imaging attachments, the riflescope offers maximum precision by day and night.
Long distances: The magnification of up to 20x enables accurate targeting and shooting even at long distances.
Twilight suitability: The CT glass (Clear Transmission) with low dispersion and extremely low stray light values ensures brilliant image quality even in low light conditions.
Technical highlights
Tenfold zoom range for maximum range of use.
Adjustment range: 442 clicks = 4.4 m at 100 m (corresponds to 42 MRAD).
Precise reticle adjustment with robust metal turrets and 0.1 MRAD click detent (1 cm/click).
Internal ZeroStop to ensure a safe return to zero position at all times.
A4N reticle (A4N) with finer bars for precise aiming.
Magnification adjustment ring with quick adjustment lever for intuitive operation.
- V10 Short version with 10x zoom range
- more field of view & better insight (up to 18.5m)
- less edge area in the viewReticle adjustment with larger metal turrets
- Internal Zerostop
- CT glass (Clear Transmission) (low dispersion)
- Extremely low stray light values (few backlight problems)
- 0.1 MRAD click detent (1cm/click)
- Adjustment travel: 442 clicks = 4.42 m at 100 m = 42 Mrad
- New design of the magnification adjustment ring with quick adjustment lever
- New reticle 4 (A4N) with significantly finer bars
Data
When do I get it? :
Orderable
Tube diameter (mm):
30
Adjustable parallax:
Yes
Riflescope front lens diameter:
50 mm
User's Guide :
.
Field of view (m):
18.5 - 1.8 m / 100 m
Magnification interval (x) :
2 – 20
Weight:
680 g
Purpose of usage:
For stalking, For hunting with clip-on, Multifunctional
Base magnification (x):
2
Eye relief:
11 - 2.5 mm
Diopter compensation:
-3 - +3 dpt
EAN code:
4260436314324
Other properties:
Szálkereszt a 2. fókuszsíkban. Klikkenként 0.1 MRAD, 1 cm 100 m-en. Max 1.84 m.
Power supply:
CR2032
Type:
Gyűrűs
Manufacturer:
DDoptics
Manufacturer's warranty:
30 years manufacturer's warranty
Manufacturer's article number:
442000301
Exit pupil:
2.5 - 11 mm
Ocular housing outer diameter:
46 mm
Front lenses outer tube diameter:
57 mm
Dimensions:
319 mm
Parallax adjustment:
15 - infinity
Reticle:
German #4
Range of reticle adjustment:
0.1 MRAD / klikk
Position of reticle :
SFP (2. Focal Plane)
Location of reticle:
Second focal plane
Color:
black
In the box:
flip caps, cleaning cloth, DDoptics chip, targets, target optics instructions, ballistics set
Height correction:
42 MRAD
Entire side correction:
42 MRAD
Illuminated reticle options:
Manuális világítópont kapcsolás
