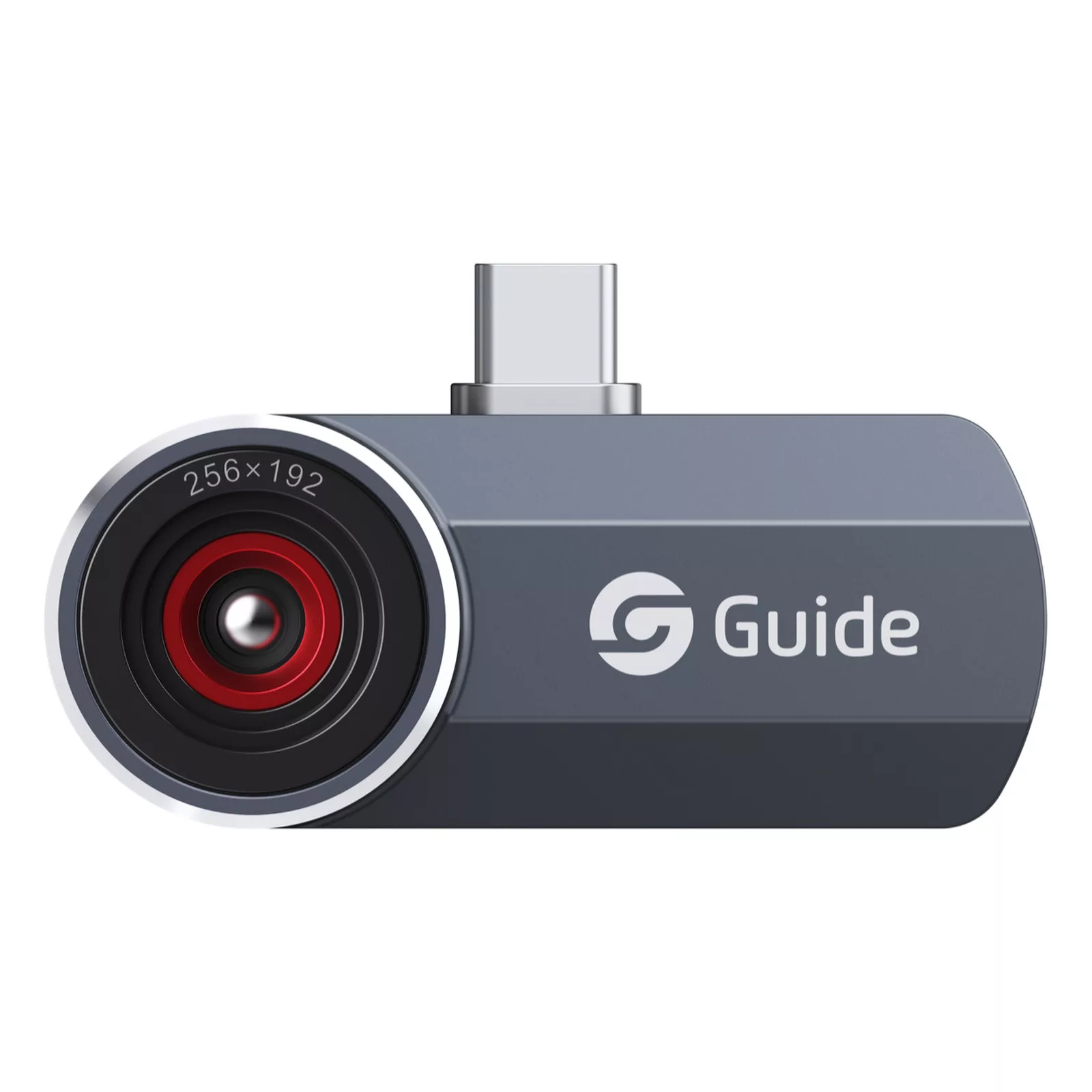

Guide MobIR 3.0 ES2 Thermal Camera for Smartphone

Guide MobIR 3.0 ES2 – Detailed Thermal Imaging for iOS and Android Smartphones

The Guide MobIR 3.0 ES2 is a compact yet powerful smartphone thermal camera combining a 256×192 infrared detector, Guide's ApexVision imaging technology and professional temperature measurement capabilities in an exceptionally portable device.

It is an ideal tool for building diagnostics, HVAC inspections, electrical troubleshooting, equipment maintenance, automotive diagnostics and a wide range of professional or home inspection tasks.

256×192 Thermal Resolution with 512×384 Super Resolution and ApexVision Technology

The MobIR ES2 features a native 256×192 infrared resolution. Combined with Guide's ApexVision Ultra-Clarity Imaging technology and real-time Super Resolution processing, thermal images can be enhanced up to 512×384 resolution.

The increased image detail is particularly useful when inspecting small electrical components, connections, mechanical parts or surfaces with subtle temperature differences.

With thermal sensitivity of ≤15 mK NETD, the ES2 can reveal very small temperature variations, helping users identify thermal anomalies more clearly and confidently.

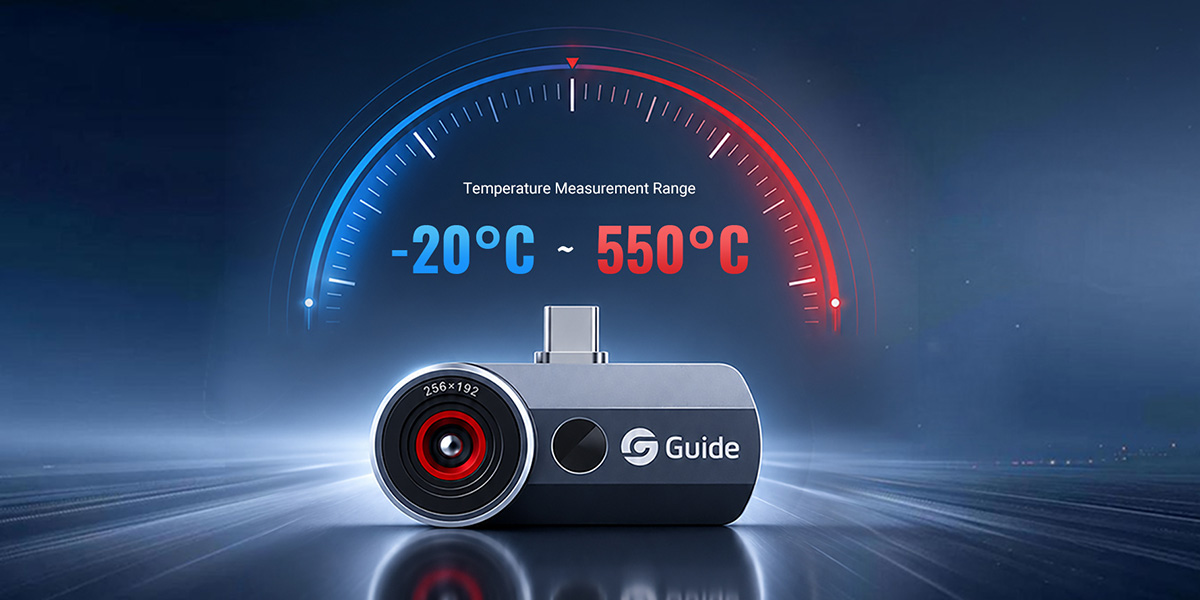

Professional Temperature Measurement from -20°C to 550°C

The wide -20°C to 550°C temperature measurement range, combined with accuracy of up to ±2°C, makes the ES2 suitable for numerous technical applications.

Typical uses include:

• detecting overheating electrical connections,
• inspecting electrical panels and systems,
• HVAC and heating system diagnostics,
• locating thermal bridges and insulation problems,
• inspecting machinery, motors and bearings,
• automotive diagnostics,
• electronic and PCBA inspection.

Wide 56°×42° Field of View

A wide 56°×42° field of view provides greater area coverage in every image. Large surfaces can therefore be inspected more efficiently without constantly repositioning the smartphone, helping users quickly locate unusually hot or cold areas.

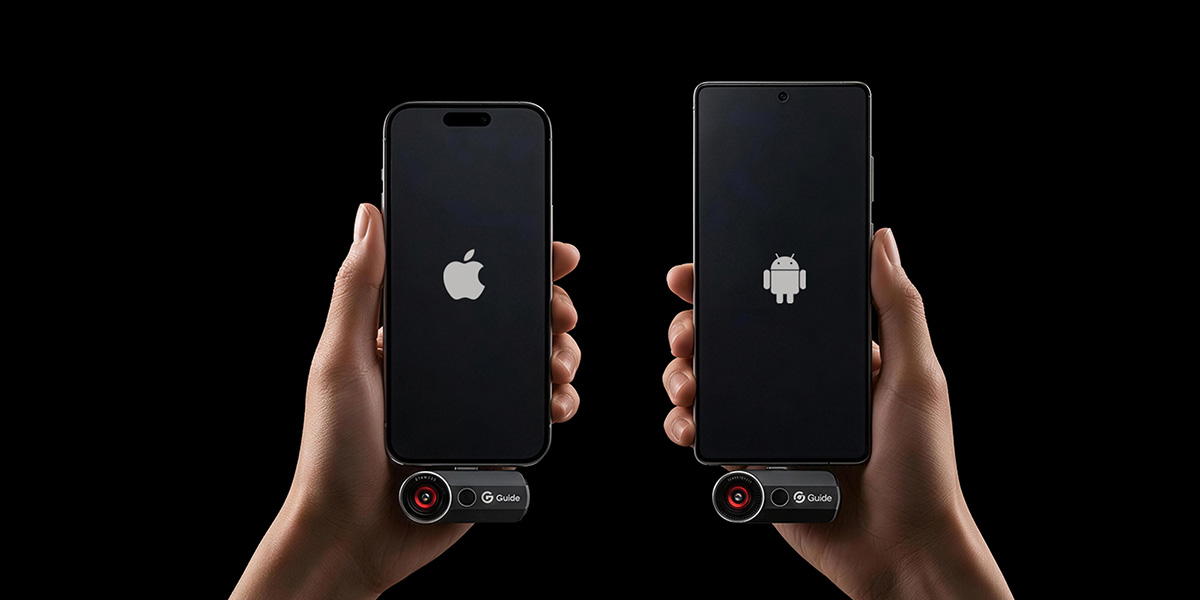

USB-C Plug and Play for iOS and Android

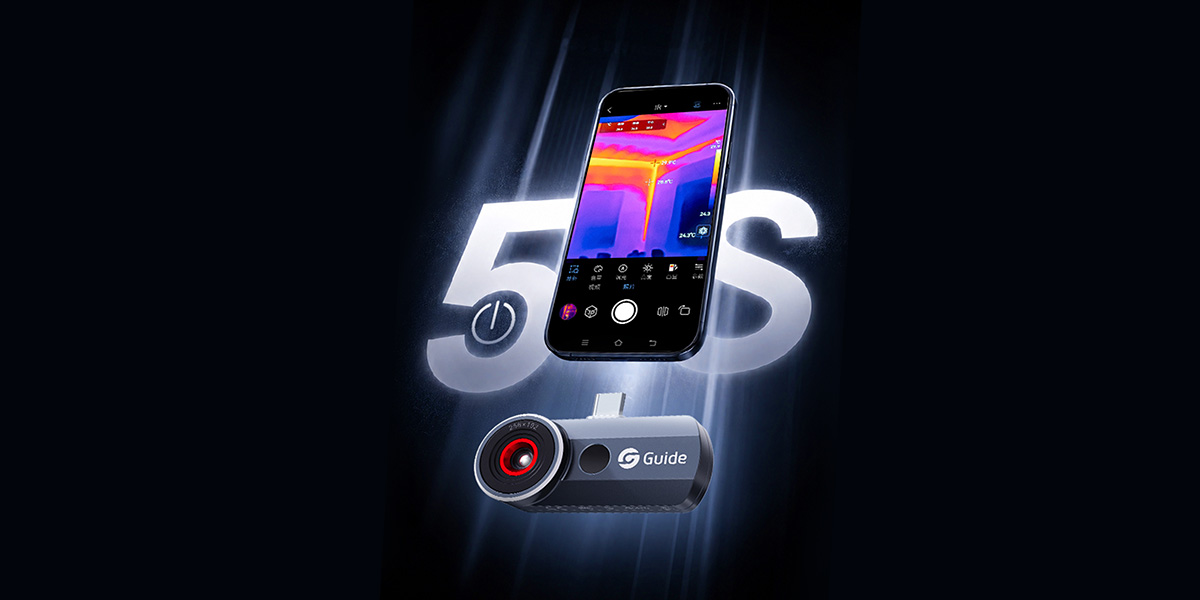

The MobIR ES2 connects directly to compatible iOS and Android smartphones via USB-C. Simply plug the camera into the phone and thermal inspection can begin in approximately 5 seconds.

There is no complicated setup process, turning your smartphone and the compact ES2 module into a highly portable thermal inspection system.

IR and PIP Image Modes

In addition to standard infrared imaging, the ES2 supports PIP viewing using the smartphone's integrated camera. This makes it easier to relate thermal anomalies to the corresponding physical component or area being inspected.

FocusIR App and AI Assistant

With the professional FocusIR app, your smartphone becomes a mobile thermal imaging workstation. The large smartphone display provides convenient thermal image viewing and analysis whether you are working in the field, workshop or at home.

A built-in multilingual AI assistant provides step-by-step guidance from initial setup to more advanced operation, helping both new and experienced users work more efficiently.

Key Features

• 256×192 infrared resolution
• up to 512×384 Super Resolution
• ≤15 mK NETD thermal sensitivity
• -20°C to 550°C measurement range
• up to ±2°C measurement accuracy
• 56°×42° wide field of view
• IR and PIP image modes
• iOS and Android compatibility
• USB-C plug-and-play connection
• approximately 5-second start-up
• ApexVision imaging technology
• FocusIR app
• multilingual AI assistant
• compact and portable design
