Vector Optics 30mm 35mm High Profile 1- Piece 20MOA Picatinny Mount
60.43 EUR
Vector Optics 30mm 35mm High Profile 1- Piece 20MOA Picatinny Mount
Item number:
VECXASR3013
Set offers
Related products
Details

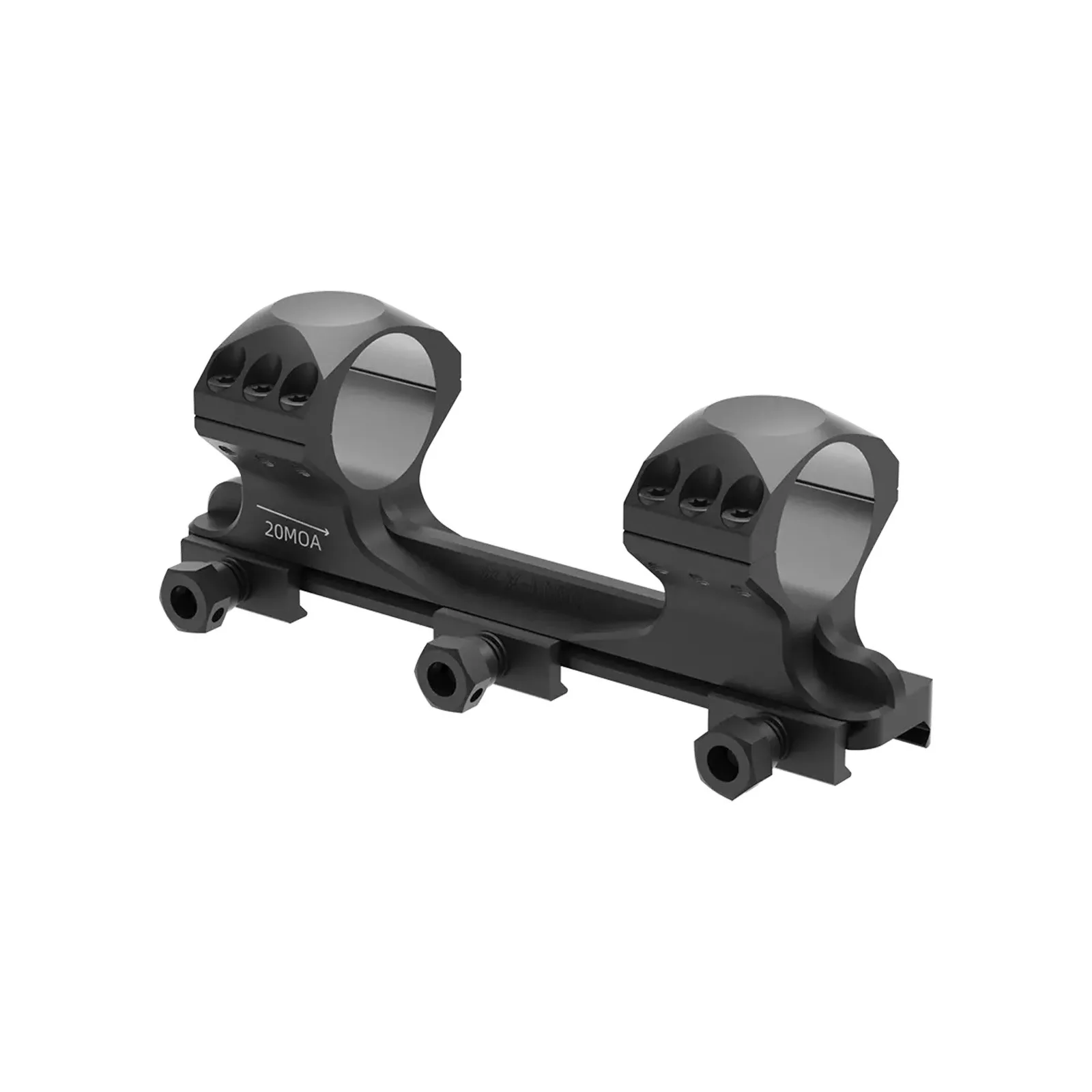

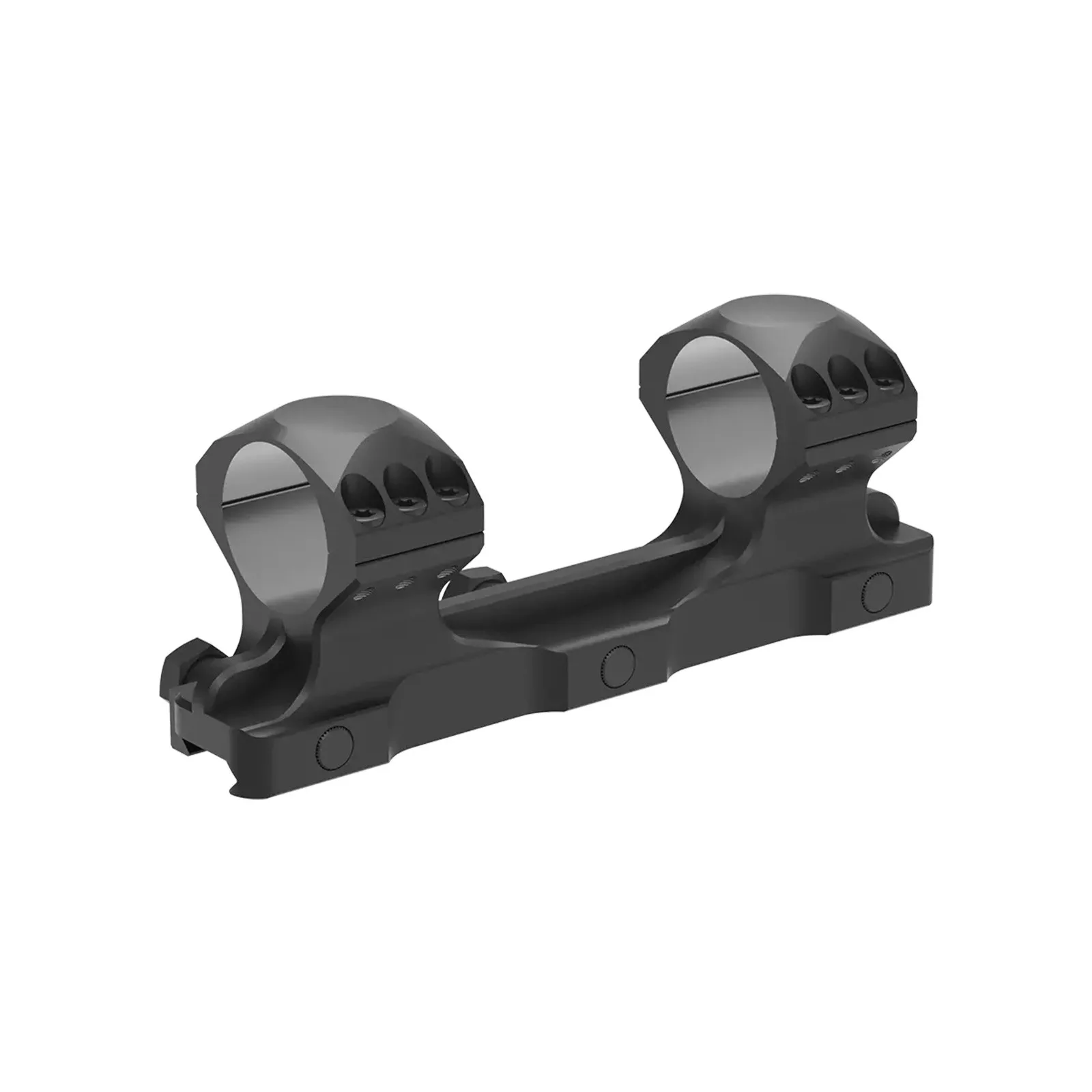

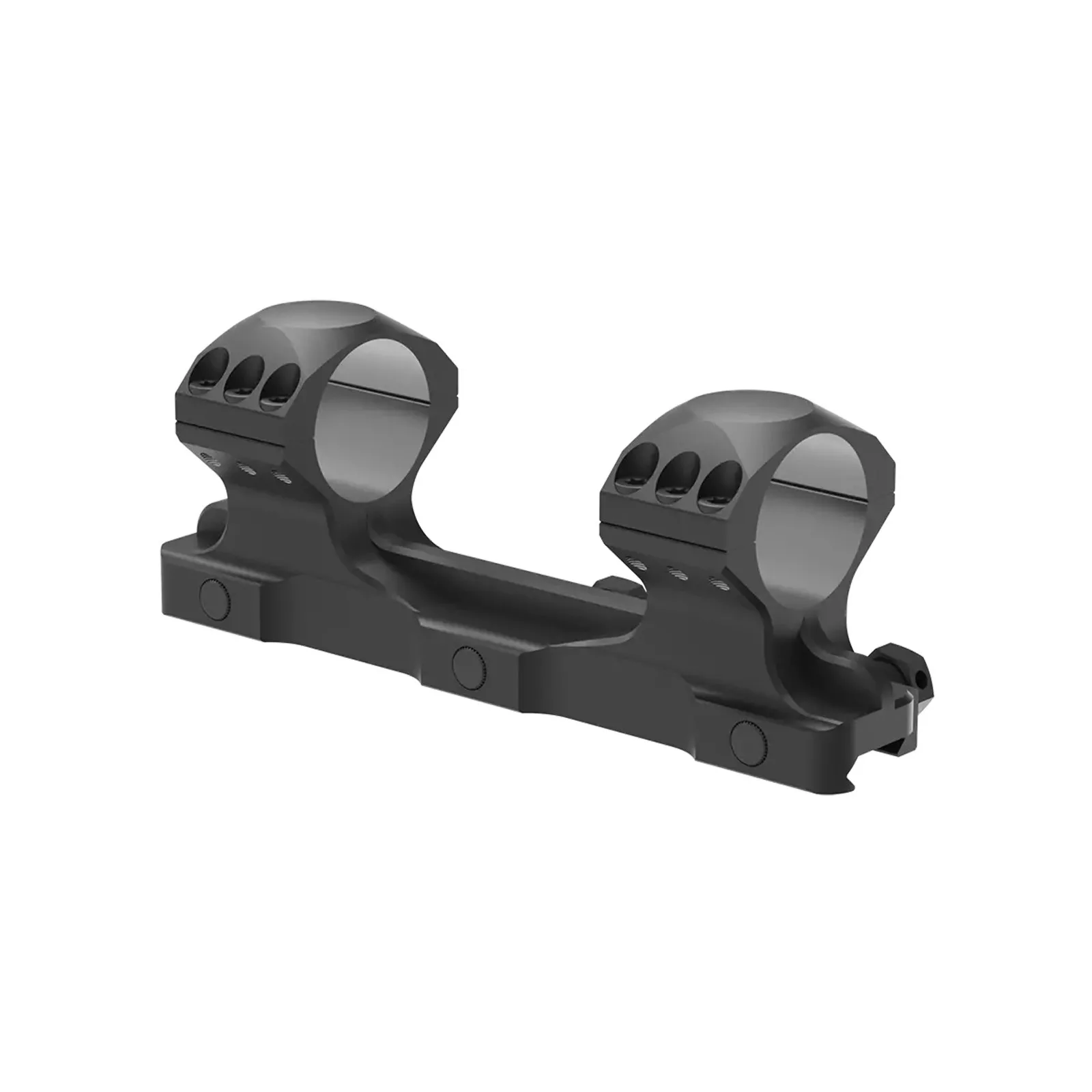

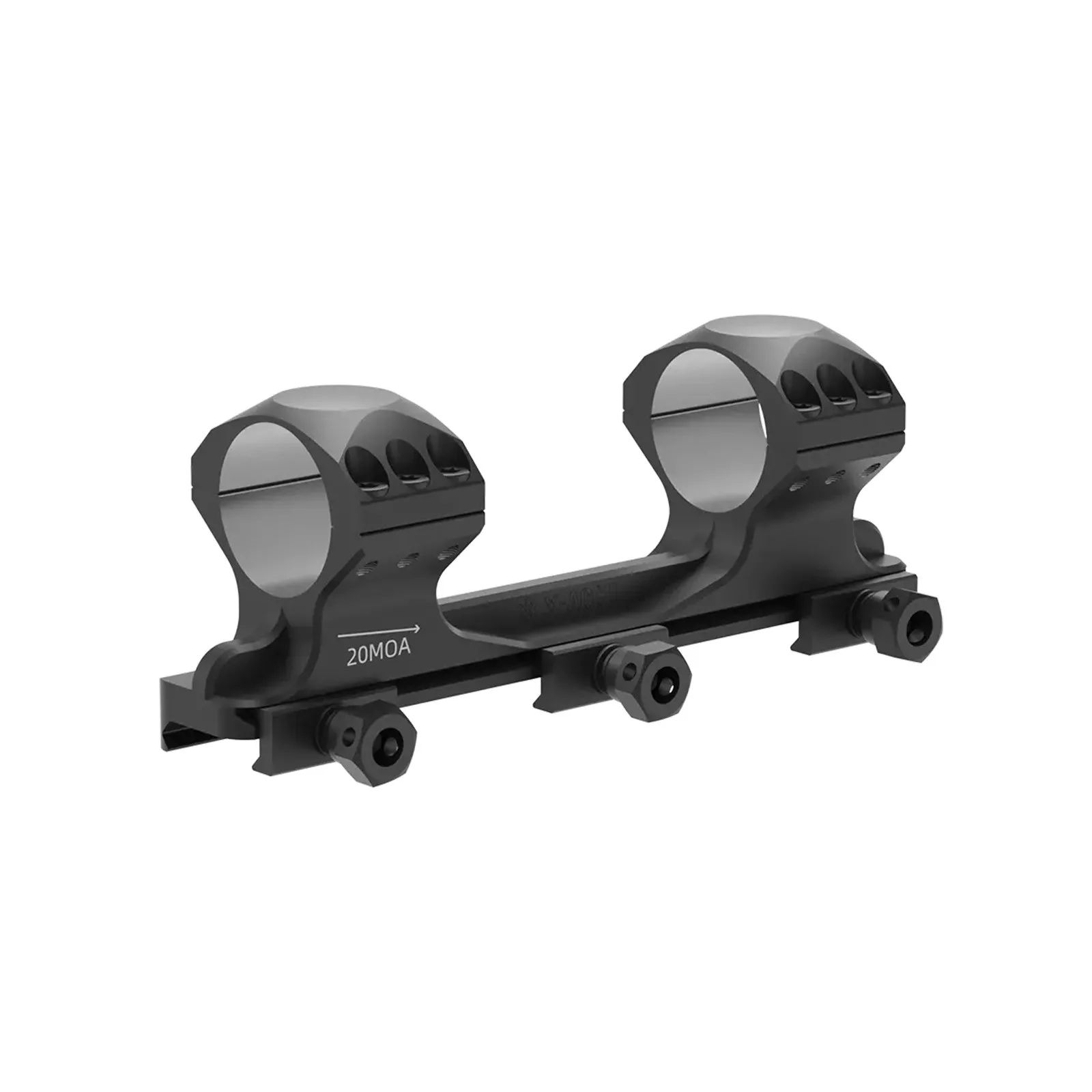

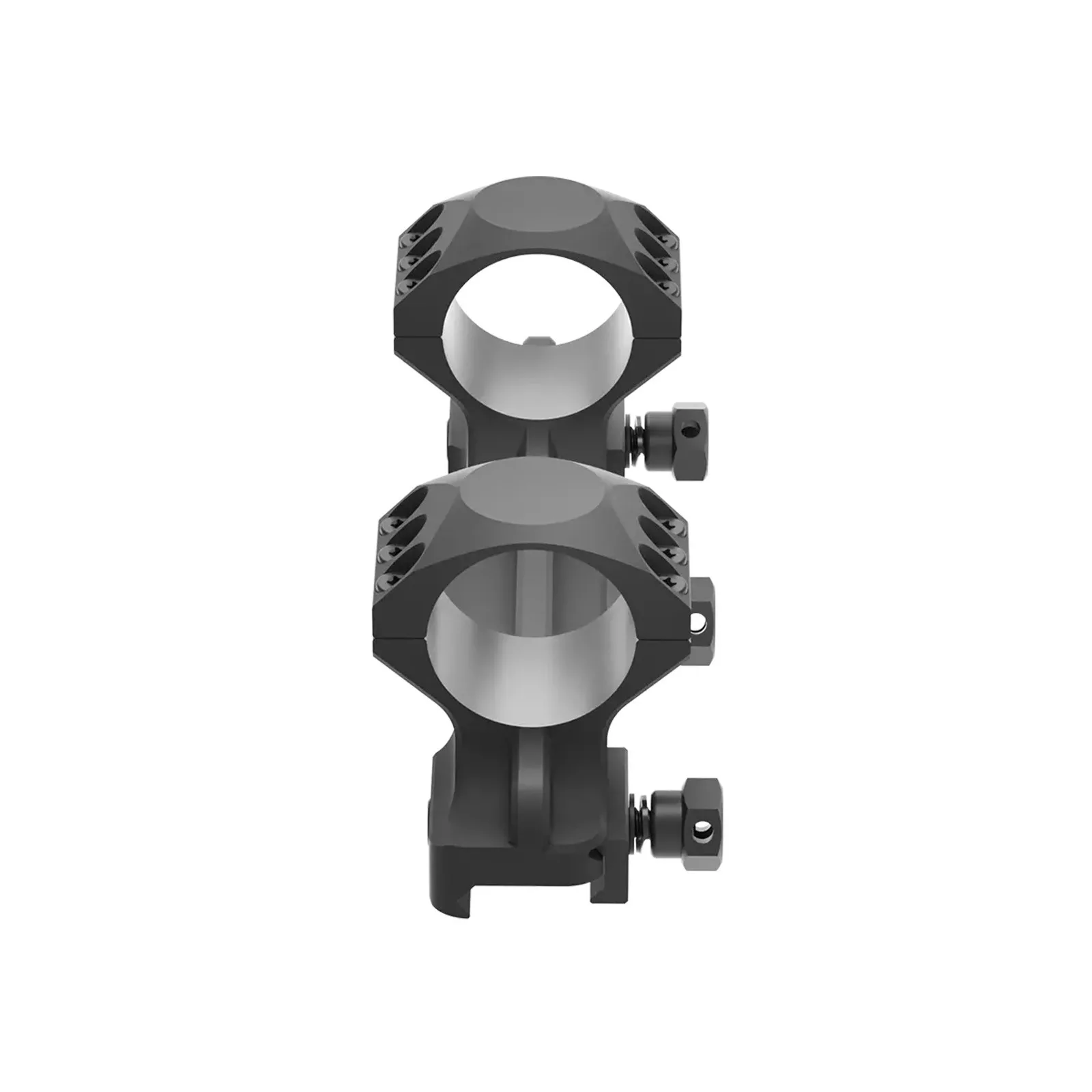

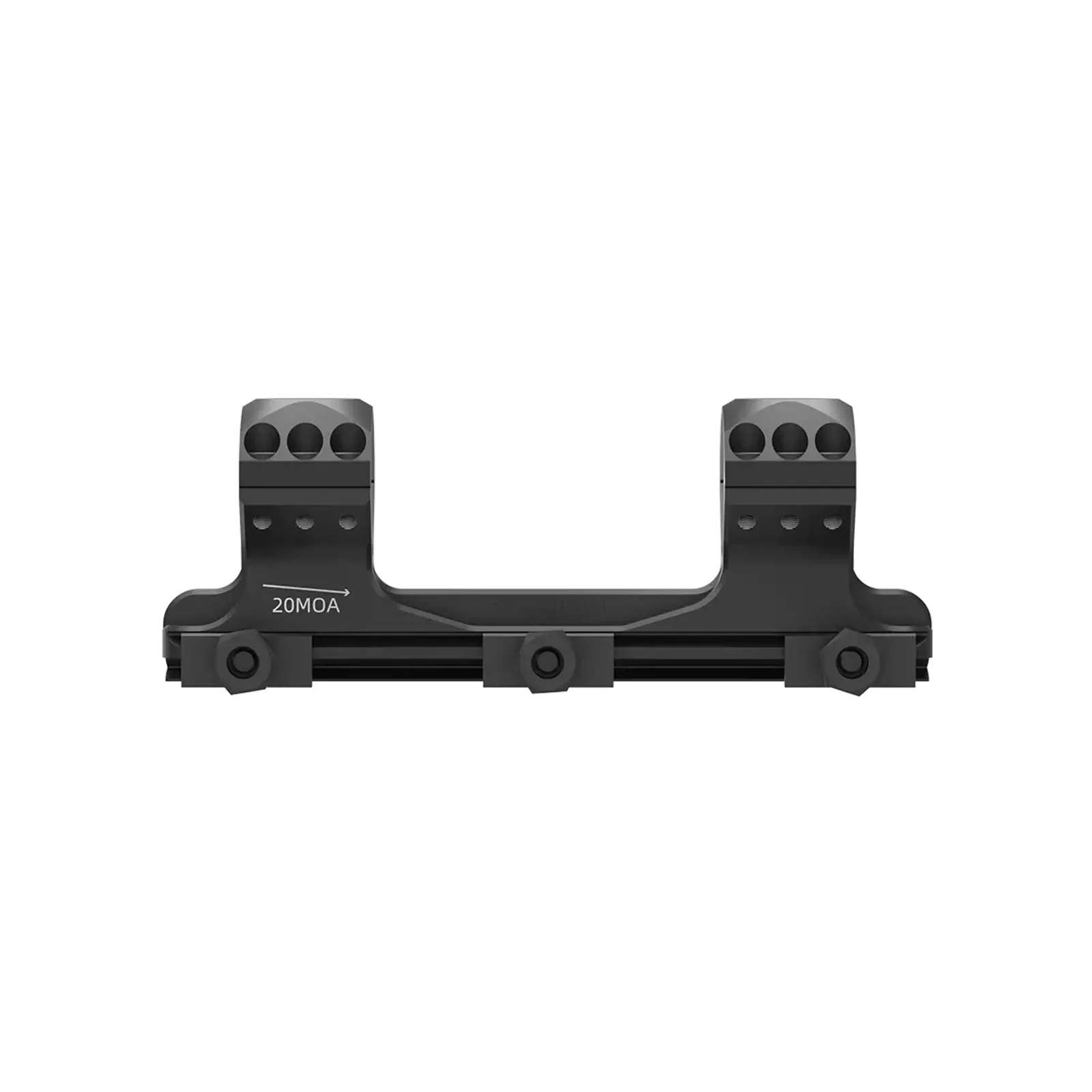

The Vector Optics X-ACCU XASR-3013 is a precision-machined, one-piece scope mount designed for optics with a 30 mm tube diameter. Its built-in 20 MOA, or 6 MIL, inclination provides additional elevation adjustment range, making it especially suitable for riflescope setups intended for longer-distance use.
The 35 mm centre height allows the mount to accommodate riflescopes with objective lenses measuring up to approximately 56–60 mm. Each ring is secured by six screws to provide an even and stable hold on the scope tube.
The mount is fully CNC-machined from 6061-T6 aluminium alloy and features a hard-anodised matte black finish. Three cross bolts and anti-retreat elements provide secure attachment to a 21 mm Picatinny rail, helping the mount maintain a reliable position under demanding use.
Key features:
- One-piece high-profile scope mount
- Designed for 30 mm scope tubes
- 20 MOA / 6 MIL inclination
- Compatible with 21 mm Picatinny rails
- Centre height: 35 mm
- Overall height: 59 mm
- Length: 154 mm
- Suitable for scopes with objective lenses up to approximately 56–60 mm
- Six mounting screws per ring
- Three cross bolts for rail attachment
- Anti-retreat elements
- Fully CNC-machined construction
- Hard-anodised matte black finish
- Maximum recommended torque for the rail-mounting nuts: 45 in-lb
- Included accessory: T15 Torx wrench
Data
Weight:
240 g
Material:
6061-T6 Aluminum Alloy
EAN code:
-
Manufacturer:
Vector Optics
Manufacturer's article number:
XASR-3013
Color:
black
