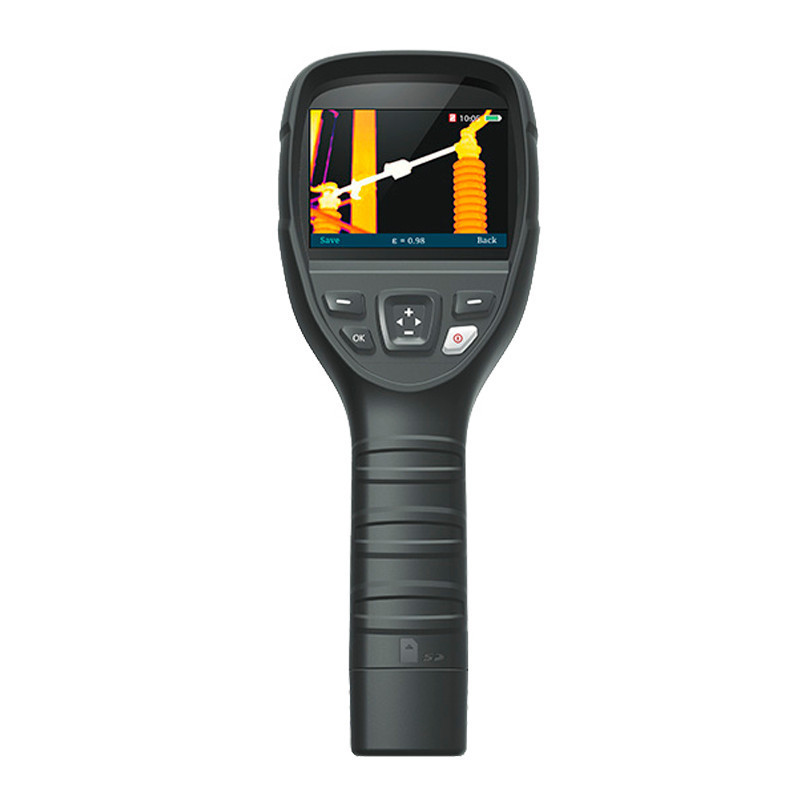

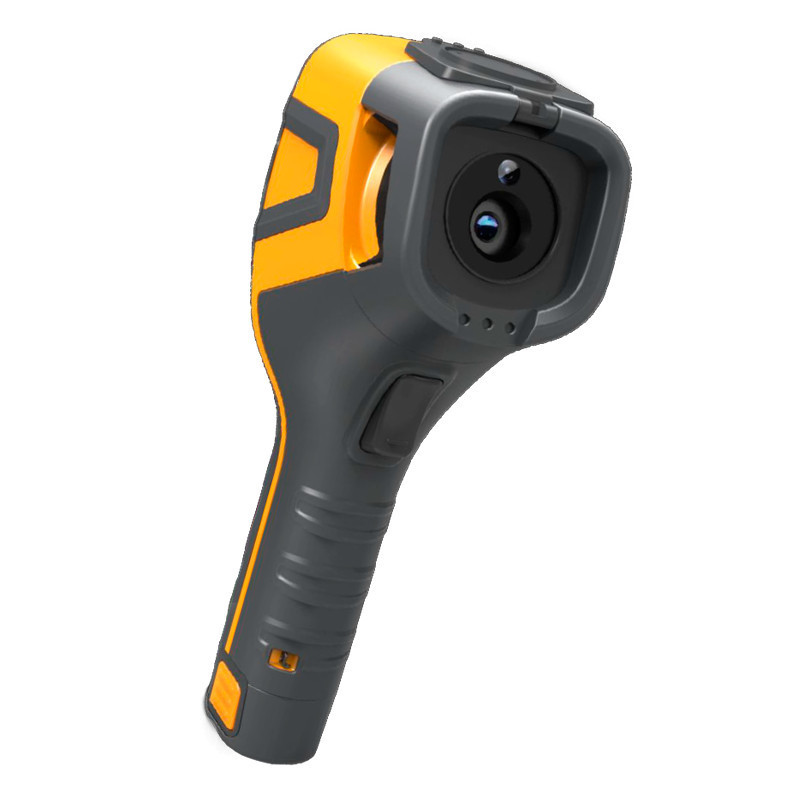

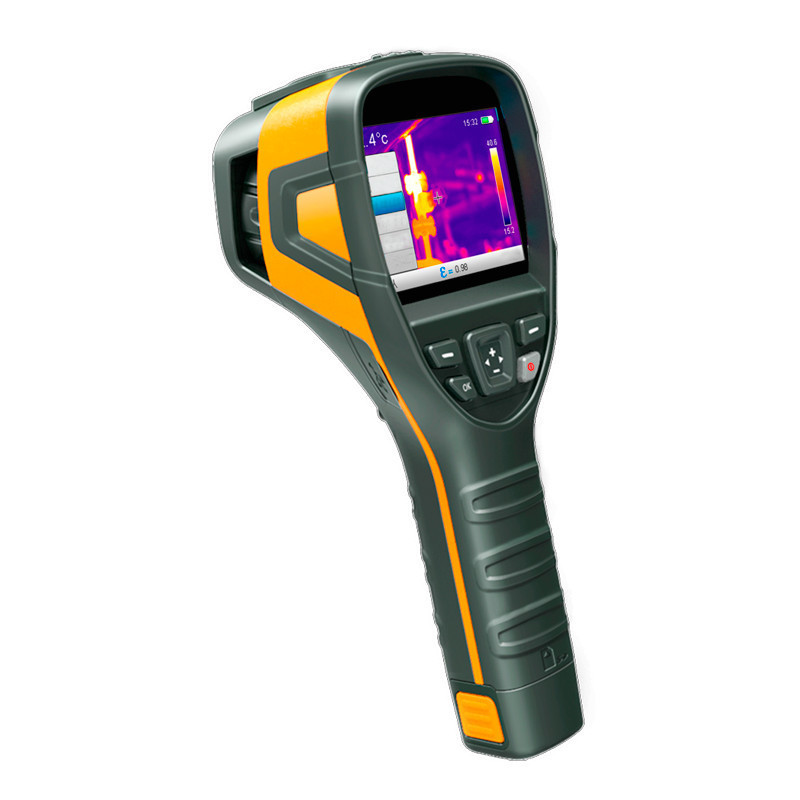

Guide B256V industrial thermal camera

Name: Guide B256V industrial thermal camera
Brand: Guide
SKU: GUIB256V
Price: 1033.59 EUR
Availability: OutOfStock

Item number:

GUIB256V

Discontinued

For professional industrial use

User's Guide :

Kattintson

Thermal sensor:

256x192 17μm

Thermal sensor NETD :

50 mK

Screen:

320x240 pixel 3.5'' LCD

Magnification interval (x) :

1 – 4

Lens:

7 mm F1.1, fix focus

Horizontal field of view (°) :

34.5

More details

1 033.59 EUR

Not available for purchase!

Leasing enquiry

Manufacturer's warranty: 2 years manufacturer's warranty

Details

Coming soon...

Data

User's Guide :

Kattintson

Thermal sensor:

256x192 17μm

Thermal sensor NETD :

50 mK

Screen:

320x240 pixel 3.5'' LCD

Magnification interval (x) :

1 – 4

Lens:

7 mm F1.1, fix focus

Horizontal field of view (°) :

34.5

Data storage:

memory card, 32 GB expandable memory card socket

Base magnification (x):

Plugs:

micro USB 2.0

Digital zoom:

2x, 4x

Other properties:

5 MP fix lens camera; Fov: 25°×19°;
WiFi, built-in light source, 21 language menu,
Color palettes: White Hot, Fulgurite, Iron Red, Hot Iron, Medical, Arctic, Rainbow 1, Rainbow 2
Settings: temperature, date and time format, watermark, report
60s Voice memo, note option, visual marking
video streaming: USB and WiFi
built-in microphone és speaker
built-in vibration
battery can be charged in the camera or outside, charging time 4 hours in the camera, 5 hours in external charger
automatic turning off, sleep mode
maximum humidity <95%
Certificate: CE, FCC, ROHS

Power supply:

built-in, rechargeable Li-ion battery 7.4 V

Video recording:

H.264 formátum, hőmérsékleti adatokkal is

Manufacturer:

Guide

Manufacturer's warranty:

2 years manufacturer's warranty

Device structure:

Handheld camera

IFOV:

2.36 mrad

Image repetition frequency:

25 / 9 Hz

Screen color modes:

6 color modes, infra thermo picture, visual picture, mixed, PIP

Field of view (°):

34.5°×26.5°

Close focusing distance (m):

Measurement properties:

Hőmérsékleti tartományok: -20°C - 350°C
Pontosság: +/- 2°C, vagy +/- 2% 15 és 35 °C közötti környezeti hőmérséklet esetén, 0°C feletti tárgyhőmérséklet esetén

Dimensions:

258mm×98mm×90mm

Working / storage temperature:

-10 - +50°C / -40 - +70°C

Optional accessories:

kamera táska, dokkoló töltő

Spectral (wavelength) range:

8 - 14 μm

Sensor:

256x192 pixel uncooled VOx UFPA microbolometer , 17 μm pixel size, NETD: ≤50 mK,

Color:

yellow

Picture resolution:

JPEG hőmérséklet adatokkal, 640x480

In the box:

camera, wrist strap, SD card, battery charger, USB cable, adapter, program CD, user's manual

Weight (g):

740

Drop test:

fall resistance 1 m

Operating time:

4 óra

Water resistance:

IP43
