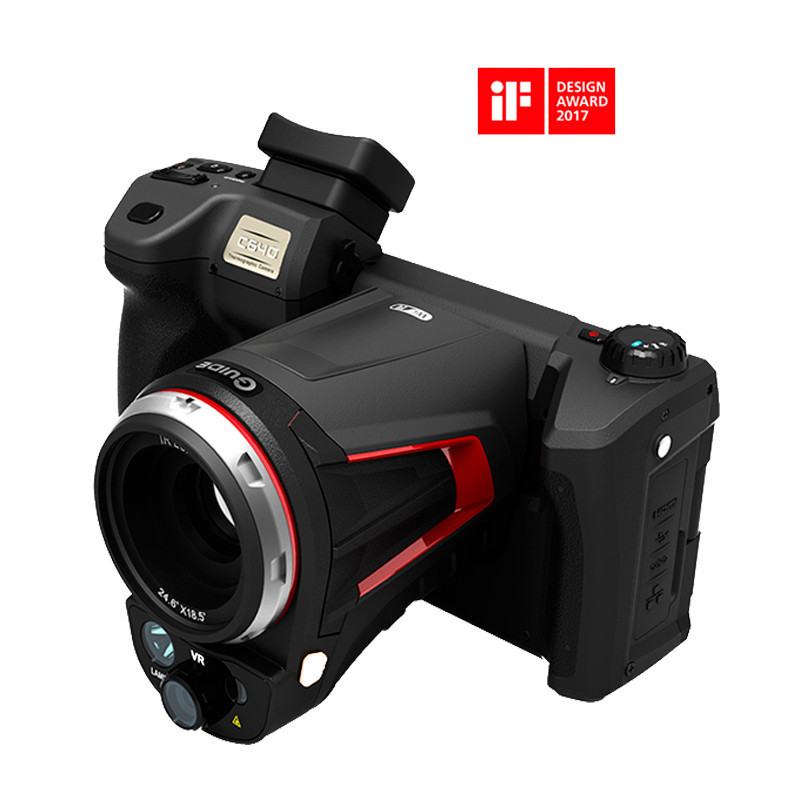

Guide C640 Pro ipari hőkamera

Name: Guide C640 Pro ipari hőkamera
Brand: Guide
SKU: GUIC640P
Price: 13348.92 EUR
Availability: OutOfStock

Item number:

GUIC640P

Discontinued

- for industrial professional use
- 640x480 pixel sensor
- 25 mm focal length, motor controlled auto focus
- temperature measurement up to 800 °C (with advance lens 2000 °C)
- IFOV: 0.67 mrad - touch screen
- 30 mK sensitivity
- image, voice note, thermal image video

Thermal sensor:

640x480 25μm

Thermal sensor NETD :

30 mK

Screen:

nagy fényerejű 5 coll

Lens:

25 mm fókusztávolság, F1.0, manuális fókusz

Horizontal field of view (°) :

24.6

More details

13 348.92 EUR

Not available for purchase!

Leasing enquiry

Manufacturer's warranty: 2 years manufacturer's warranty

Customer's warranty: 24 months

for legal persons who are not consumers (for example companies): 12 months of accessory warranty

Details

Coming soon…

Data

Thermal sensor:

640x480 25μm

Thermal sensor NETD :

30 mK

Screen:

nagy fényerejű 5 coll

Lens:

25 mm fókusztávolság, F1.0, manuális fókusz

Horizontal field of view (°) :

24.6

Data storage:

belső memória, SD kártya foglalat 32 GB-ig bővíthető memóriakártya

Base magnification (x):

Tripod thread:

van

Plugs:

micro USB 2.0, micro HDMI, TF kártya, tápellátás

Other properties:

Android opeating system - heat map analysis software

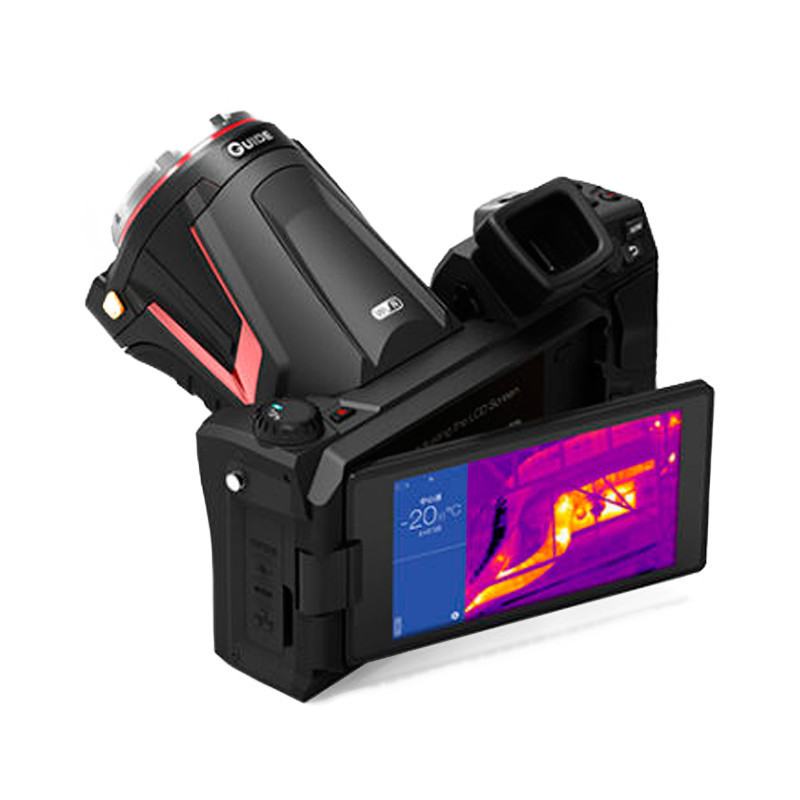

270° rotatable screen
lens can be rotated 70 ° in the vertical direction
1280x960 resolution LCOS viewer
16 GB SD card
Magnification: 1.1 - 10x smooth
built-in WiFi, video streaming, bulit-in light source
Color palettes:White Hot, Fulgurite, Iron Red, Hot Iron, Medical, Arctic, Rainbow 1, Rainbow 2
Settings: temperature, date and time format, watermark, report
10 dot, 10 line, 10 different area temperature control
automatic minimal and maximum temperature tracking
60s voice memo,note option, visual marking
video streaming: USB and WiFi
built-in microphone és speaker
built-in vibration
battery can be charged in the camera or outside, charging time 4 hours in the camera, 5 hours in external charger
automatic turning off, sleep mode
maximum humidity <95%
Certificate: CE, FCC, ROHS

Power supply:

beépített, tölthető Li-ion akkumulátor

Video recording:

H.264 formátum, hőmérsékleti adatokkal is

Manufacturer:

Guide

Manufacturer's warranty:

2 years manufacturer's warranty

Device structure:

Handheld camera

IFOV:

0.67 mrad

Image repetition frequency:

60 / 50 Hz (opcionális 9 Hz)

Screen color modes:

10 paletta, infra hőkép, vizuális kép, mixelve, kép a képben

Field of view (°):

24.6°×18.5°

Close focusing distance (m):

0.3

Measurement properties:

Hőmérsékleti tartományok: 1. szűrő: -20°C - 250°C; 2. szűrő: 200°C - 800°C, opcionálisan akár 800°C - 2000°C
Pontosság:

Dimensions:

206mm×145mm×135mm

Working / storage temperature:

-15 - +50°C / -40 - +70°C

Spectral (wavelength) range:

7.5 - 14 μm

Sensor:

640x480 pixeles hűtetlen VOx UFPA mikrobolométer, 25μm pixelméret, NETD: 30 mK,

Color:

black

Picture resolution:

JPEG hőmérséklet adatokkal, RAW

Weight (g):

1350

Drop test:

fall resistance 2 m

Operating time:

4 óra

Water resistance:

IP54
